Product Summary

The AD822ARZ-REEL7 is a dual precision, low power FET input op amp that can operate from a single supply of 3.0 V to 36 V or dual supplies of ±1.5 V to ±18 V. The has true single-supply capability with an input voltage range extending below the negative rail, allowing the AD822 to accommodate input signals below ground in the single-supply mode. Applications of the AD822ARZ-REEL7 include: Battery-powered precision instrumentation Photodiode preamps, Active filters, 12-bit to 14-bit data acquisition systems, Medical instrumentation and Low power references and regulators

Parametrics

AD822ARZ-REEL7 absolute maximum ratings: (1) Supply Voltage: ±18V; (2) Internal Power Dissipation, PDIP (N) : Observe derating curves, SOIC (R) : Observe derating curves; (3) Input Voltage: (+V S + 0.2 V) to -(20 V + VS) ; (4) Output Short Circuit Duration: Indefinite; (5) Differential Input Voltage: ±30V; (6) Storage Temperature Range (N) : –65°C to +125°C; (7) Storage Temperature Range (R, RM) : –65°C to +150°C ; (8) Operating Temperature Range AD822 A Grade and B Grade: -40°C to +85°C; (9) Lead Temperature Range (Soldering, 60 sec) : 260°C.

Features

AD822ARZ-REEL7 features: (1) True single-supply operation; (2) Output swings rail-to-rail; (3) Input voltage range extends below ground; (4) Single-supply capability from 3V to 36V; (5) Dual-supply capability from ±1.5V to ±18V; (6) Minimum output current of 15 mA; (7) 800μV maximum input offset voltage; (8) 13 nV/√Hz @ 10 kHz; (9) 25 pA maximum input bias current; (10) No phase inversion.

Diagrams

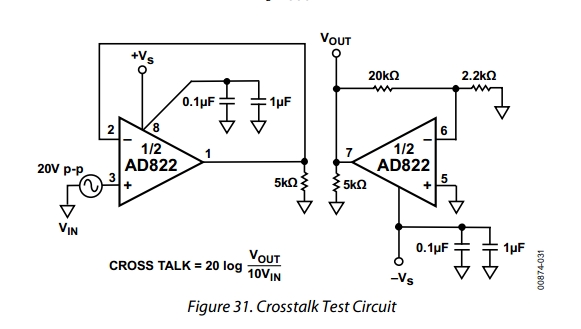

AD822ARZ-REEL7 Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

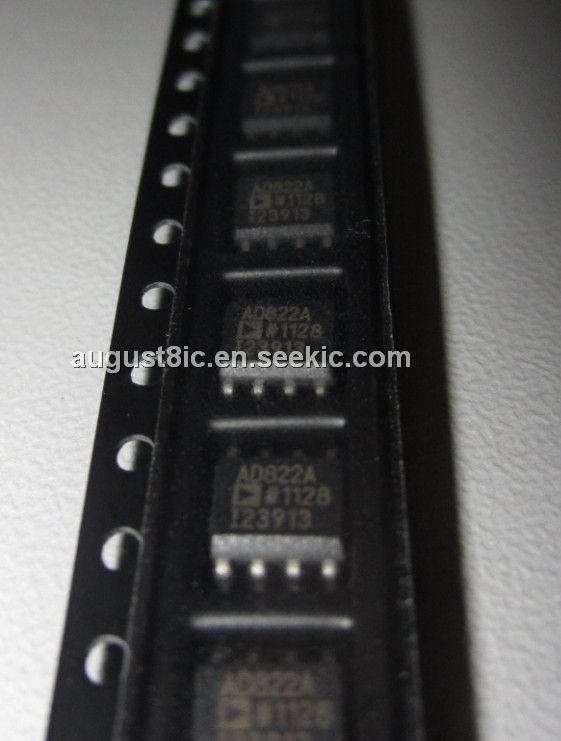

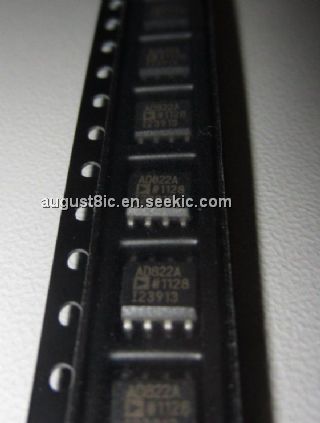

AD822ARZ-REEL7
AD822ARZ-REEL7


IC OPAMP GP R-R 1.9MHZ LP 8SOIC

Data Sheet

0-750: $2.12
750-1500: $2.00
1500-2250: $1.98
