The K7B403625B-PI75 is a Synchronous Static Random Access Memory designed for high performance second level cache of Pentium and Power PC based System. The K7B403625B-PI75 is organized as 128K(256K) words of 36(18) bits and integrates address and control registers, a 2-bit burst address counter and added some new functions for high performance cache RAM applications; GW, BW, LBO, ZZ. Write cycles are internally self-timed and synchronous.
Parametrics
K7B403625B-PI75 absolute maximum ratings: (1)Voltage on VDD Supply Relative to VSS VDD: -0.3 to 4.6 V; (2)Voltage on VDDQ Supply Relative to VSS VDDQ: VDD V; (3)Voltage on Input Pin Relative to VSS VIN: -0.3 to VDD+0.3 V; (4)Voltage on I/O Pin Relative to VSS VIO: -0.3 to VDDQ+0.3 V; (5)Power Dissipation PD: 2.2 W; (6)Storage Temperature TSTG: -65 to 150 ℃; (7)Operating Temperature Commercial TOPR: 0 to 70 ℃; (8)Operating Temperature Industrial TOPR: -40 to 85 ℃; (9)Storage Temperature Range Under Bias TBIAS: -10 to 85 ℃.
Features
K7B403625B-PI75 features: (1)Synchronous Operation; (2)2 Stage Pipelined operation with 4 Burst; (3)On-Chip Address Counter; (4)Self-Timed Write Cycle; (5)On-Chip Address and Control Registers; (6)VDD= 3.3V+0.3V/-0.165V Power Supply; (7)VDDQ Supply Voltage 3.3V+0.3V/-0.165V for 3.3V I/O or 2.5V+0.4V/-0.125V for 2.5V I/O; (8)5V Tolerant Inputs Except I/O Pins; (9)Byte Writable Function; (10)Global Write Enable Controls a full bus-width write; (11)Power Down State via ZZ Signal; (12)LBO Pin allows a choice of either a interleaved burst or a linear burst; (13)Three Chip Enables for simple depth expansion with No Data Contnention; (14); 2cycle Enable, 1cycle Disable; (15)Asynchronous Output Enable Control; (16)ADSP, ADSC, ADV Burst Control Pins; (17)TTL-Level Three-State Output; (18)100-TQFP-1420A; (19)Operating in commeical and industrial temperature range.

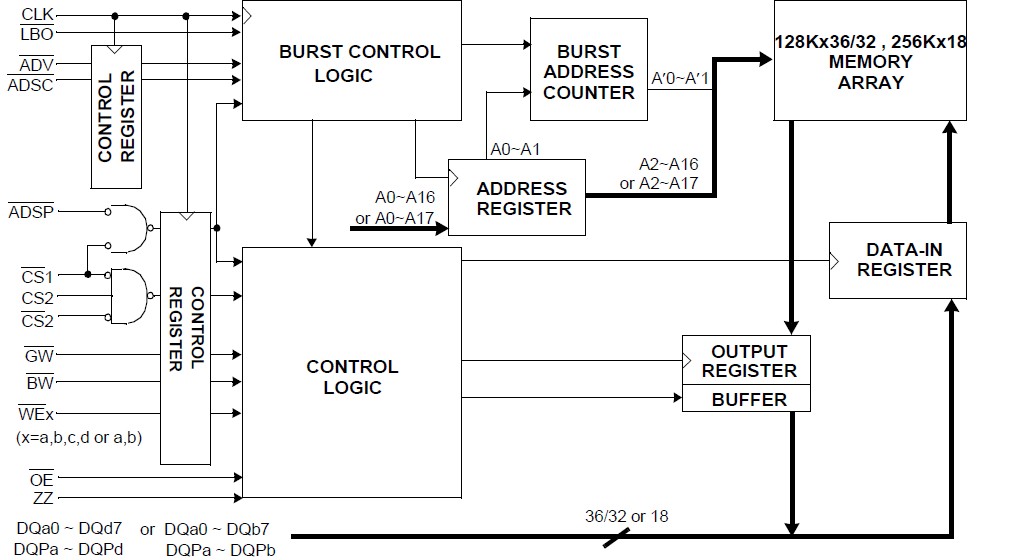

Diagrams
 |
