Product Summary
The FLI8531-LF-AB is a Entry level LCD TV controller. The FLI8531-LF-AB as an entry level product offers an integrated video decoder with a 3D comb filter and proven DCDi Cinema technology. The Faroudja DCDi Cinema video format converter and Advanced Color Management (ACM-3D) provide exceptional video quality. The video quality level that was exclusive to Faroudja Home Theater Systems is now available in a single-chip solution. The FLI8531-LF-AB also comprises an integrated Analog Front-End (AFE) with triple ADCs and a cross-point switch. The flexible AFE ensures simple PCB design with direct connections to TV tuners and input video connectors. Thus, for a single LCD TV chassis, the FLI8531-LF-AB is able to support worldwide standards. For regional variations, connectors and firmware changes are the only requirements.
Parametrics
FLI8531-LF-AB absolute maximum ratings: (1)ADC capture: 135 MHz; (2)Memory size: 256 Mb.
Features
FLI8531-LF-AB features: (1)Integrated 3D video decoder; (2)PIP applications; (3)1080i MADi superior video quality; (4)Flexible analog capture up to 1080p YPrPb or 135 MHz RGB; (5)VBI signal processing including WST level 2.5 support; (6)Flexible DDR memory interface; (7)Faroudja TrueLife video enhancer; (8)Advanced Color Management (ACM-3D)and Adaptive Contrast Control (ACC); (9)On-chip microprocessor; (10)Bitmapped OSD controller; (11)Package: 208 PQFP.

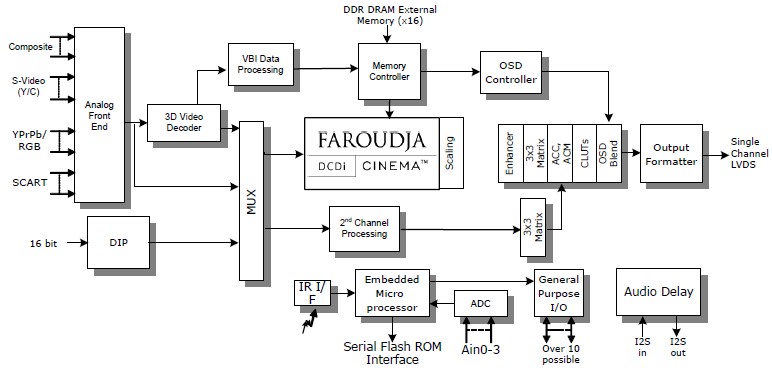

Diagrams
 |
