Product Summary

The AZ1086H-3.3TRE1 is a low dropout positive voltage regulator with a maximum dropout of 1.5V at 1.5A of load current and features on-chip thermal shutdown. The AZ1086H-3.3TRE1 also includes a bandgap reference and a current limiting circuit. The AZ1086H-3.3TRE1 is available in 1.5V, 1.8V, 2.5V, 3V, 3.3V, and 5.0V versions. The fixed versions integrate the adjust resistors. It is also available in an adjustable version, which can set the output voltage with only two external resistors.

Parametrics

AZ1086H-3.3TRE1 absolute maximum ratings: (1)IOUT: 1.5A; (2)Quiescent Current: 10MA; (3)VIN: 15V; (4)VOUT: 5V; (5)PSRR: 75dB; (6)Operating Junction Temperature: 0 to 125℃.

Features

AZ1086H-3.3TRE1 features: (1)Current Limit and Thermal Protection; (2)Output Current: 1.5 A; (3)Current Limit: 2.3 A; (4)Line Regulation: 1 mV (Typical)at 3.3V Output Voltage; (5)Load Regulation: 7 mV (Typical)at 3.3V Output Voltage.

Diagrams

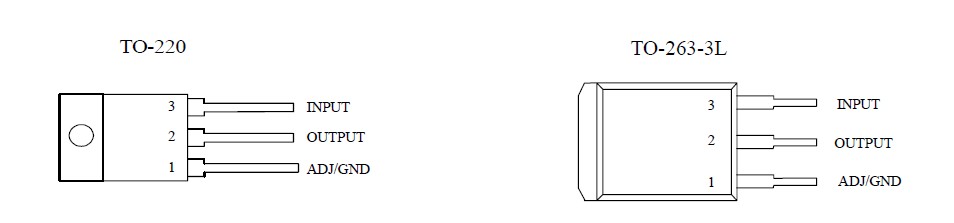

AZ1086H-3.3TRE1 pin connection
