Product Summary
The HCPL-786J-500E is an optically isolated sigma-delta modulator. The HCPL-786J-500E Optically Isolated Modulator and HCPL-0872 Digital Interface IC or digital filter together form an isolated programmable two-chip analog-to-digital converter. The isolated modulator allows direct measurement of motor phase currents in power inverters. In operation, the HCPL-786J-500E Isolated Modulator (optocoupler with 3750 VRMS dielectric withstand voltage rating) converts a lowbandwidth analog input into a high-speed one-bit data stream by means of a Sigma-Delta over-sampling modulator. This modulation provides for high noise margins and excellent immunity against isolation-mode transients. The modulator data and on-chip sampling clock are encoded and transmitted across the isolation boundary where they are recovered and decoded into separate high-speed clock and data channels.
Parametrics
HCPL-786J-500E absolute maximum ratings: (1)Storage Temperature TS: -55 125 ℃; (2)Ambient Operating Temperature TA: -40 85 ℃; (3)Supply Voltages VDD1, VDD2: 0 5.5 V; (4)Steady-State Input Voltage VIN+, VIN: -2.0 VDD1 + 0.5 V; (5)Two Second Transient Input Voltage: -6.0; (6)Output Voltages MCLK, MDAT: -0.5 VDD2 + 0.5 V.
Features
HCPL-786J-500E features: (1)12-bit Linearity; (2)200 ns Conversion Time (Pre- Trigger Mode 2 with HCPL-0872); (3)12-bit Effective Resolution with 5 μs Signal Delay (14-bit with 102 μs)(with HCPL-0872); (4)Fast 3 μs Over-Range Detection (with HCPL-0872); (5)± 200 mV Input Range with Single 5 V Supply; (6)1% Internal Reference Voltage Matching; (7)Offset Calibration (with HCPL- 0872); (8)-40℃ to +85℃ Operating Temperature Range; (9)15 kV/μs Isolation Transient Immunity.

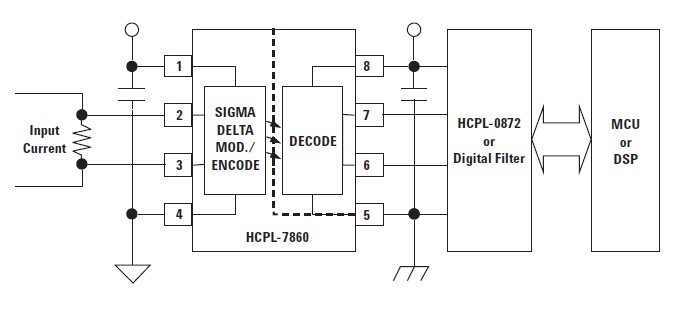

Diagrams
