Product Summary

The AT24C256N-10SU-2.7 is a 2-wire serial eeprom. The AT24C256N-10SU-2.7 provides 131,072/262,144 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 16,384/32,768 words of 8 bits each. TheAT24C256N-10SU-2.7 is cascadable feature allows up to 4 devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The devices are available in space-saving 8-pin JEDEC PDIP, 8-pin EIAJ, 8-pin JEDEC SOIC, 14-pin TSSOP, and 8-pin LAP packages. In addition, the entire family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 3.6V) versions.

Parametrics

AT24C256N-10SU-2.7 absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature : -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground : -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0 mA.

Features

AT24C256N-10SU-2.7 features: (1)Internally Organized 16,384 x 8 and 32,768 x 8; (2)2-Wire Serial Interface; (3)Schmitt Trigger, Filtered Inputs for Noise Suppression; (4)Bidirectional Data Transfer Protocol; (5)1 MHz (5V), 400 kHz (2.7V)and 100 kHz (1.8V)Compatibility; (6)Write Protect Pin for Hardware and Software Data Protection; (7)64-Byte Page Write Mode (Partial Page Writes Allowed); (8)Self-Timed Write Cycle (5 ms typical); (9)Automotive Grade and Extended Temperature Devices Available; (10)8-Pin JEDEC PDIP, 8-Pin JEDEC and EIAJ SOIC, 14-Pin TSSOP, and 8-Pin Leadless Array Packages.

Diagrams

AT24C256N-10SU-2.7 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

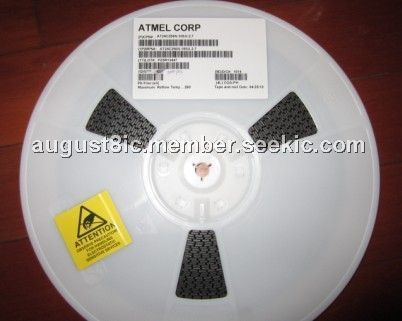

AT24C256N-10SU-2.7
AT24C256N-10SU-2.7

Atmel

EEPROM 128/256K 2-WIRE BUS

Data Sheet

Negotiable
