Product Summary

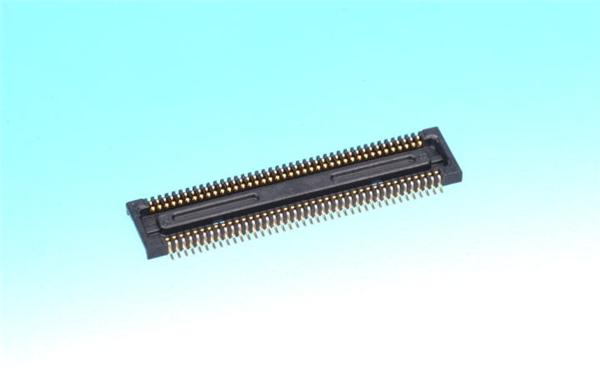

The DF30FC-24DP-0.4V(81) is a board-to-board / board-to-FPC connector. The DF30FC-24DP-0.4V(81) is addition of a new extremely low profile connectors to Hiroses wide range of high reliability board-to-board/board-to-FPC connection solutions.

Parametrics

DF30FC-24DP-0.4V(81) absolute maximum ratings: (1)Rated current: 0.3A; (2)Rated voltage: 30V AC; (3)Operating temperature range : -35 to 85℃; (4)Storage temperature range: -10 to 60℃.

Features

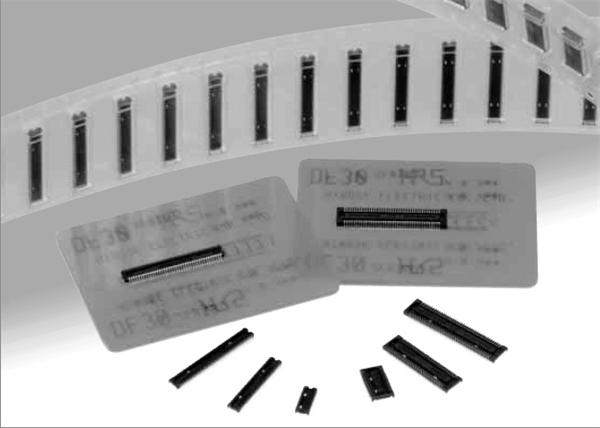

DF30FC-24DP-0.4V(81) features: (1)Contact reliability: Concentration of the contacts normal forces at the single point assures good contact wipe and electrical reliability, while confirming the fully mated condition with a definite tactile click; (2)Self alignment: Recognizing the difficulties of mating extremely small connectors in limited spaces the connectors will self align in horizontal axis within 0.3 mm; (3)Automatic board placement: Packaged on tape-and-reel the plug and headers have sufficiently large flat areas to allow pick-up with vacuum nozzles of automatic placement equipment; (4)Variety of contact positions and styles: Available in standard contact positions of: 20, 22, 24, 30, 34, 40, 50, 60, 70 and 80 with and without metal fittings. Addition of metal fittings does not affect external dimensionsof the connectors. Smaller contact positions are also available; (5)Support for continuity test connector: Connectors which have increased insertion and removal durability are available for continuity tests. Contact your Hirose sales representative for details.

Diagrams

DF30FC-24DP-0.4V(81) dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DF30FC-24DP-0.4V(81)
DF30FC-24DP-0.4V(81)

Hirose Connector

Board to Board / Mezzanine Connectors 24P DR HDR STR SMT NO MTL FIT W/O BOSS

Data Sheet

0-3900: $0.30
3900-5000: $0.30
