Product Summary

The AT29LV1024-15TI is a 1-Megabit (64K x 16) 3-volt Only Flash Memory. The AT29LV1024-15TI is a 3-volt only in-system Flash programmable and erasable read only memory (PEROM). Its 1 megabit of memory is organized as 65,536 words by 16 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 150 ns with power dissipation of just 54 mW. When the AT29LV1024-15TI is deselected, the CMOS standby current is less than 50 mA.

Parametrics

AT29LV1024-15TI absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature : -65℃ to +150℃; (3)All Input Voltages (including NC Pins)with Respect to Ground : -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground : -0.6V to VCC + 0.6V; (5)Voltage on A9 (including NC Pins)with Respect to Ground : -0.6V to +13.5V.

Features

AT29LV1024-15TI features: (1)Single Voltage, Range 3V to 3.6V Supply; (2)3-Volt Only Read and Write Operation; (3)Software Protected Programming; (4)Fast Read Access Time - 150 ns; (5)Low Power Dissipation 15 mA Active Current, 50 μA CMOS Standby Current; (6)Sector Program Operation Single Cycle Reprogram (Erase and Program), 512 Sectors (128 words/sector), Internal Address and Data Latches for 128 Words; (7)Fast Sector Program Cycle Time - 20 ms; (8)Internal Program Control and Timer; (9)DATA Polling for End of Program Detection; (10)Typical Endurance > 10,000 Cycles; (11)CMOS and TTL Compatible Inputs and Outputs; (12)Commercial and Industrial Temperature Ranges.

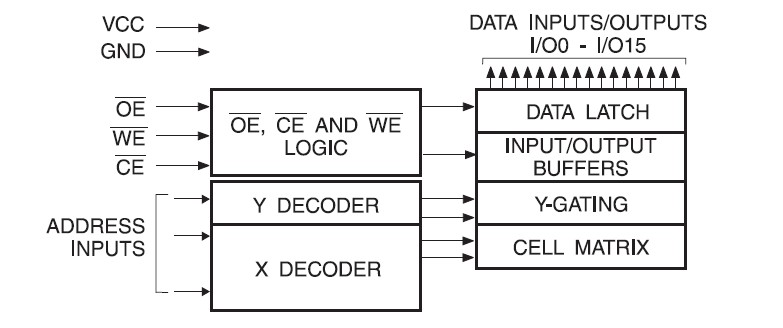

Diagrams

AT29LV1024-15TI pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT29LV1024-15TI
AT29LV1024-15TI


IC FLASH 1MBIT 150NS 48TSOP

Data Sheet

Negotiable
