Product Summary
The M27C4001-10F1 is a 4 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). The M27C4001-10F1 is ideally suited for microprocessor systems requiring large programs and is organised as 524,288 by 8 bits. The FDIP32W (window ceramic frit-seal package) has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure. For applications where the content is programmed only one time and erasure is not required, the M27C4001-10F1 is offered in PDIP32, PLCC32 and TSOP32 (8 x 20 mm) packages.
Parametrics
M27C4001-10F1 absolute maximum ratings: (1)TA Ambient Operating Temperature: –40 to 125 ℃; (2)TBIAS Temperature Under Bias: –50 to 125 ℃; (3)TSTG Storage Temperature: –65 to 150 ℃; (4)VIO Input or Output Voltage (except A9): –2 to 7 V; (5)VCC Supply Voltage: –2 to 7 V; (6)VA9 A9 Voltage: –2 to 13.5 V; (7)VPP Program Supply Voltage: –2 to 14 V.
Features
M27C4001-10F1 features: (1)5V ± 10% supply voltage in Read operation; (2)Access time: 35ns; (3)Low power consumption: – Active Current 30mA at 5MHz – Standby Current 100μA; (4)Programming voltage: 12.75V ± 0.25V; (5)Programming time: 100μs/Word; (6)Electronic signature – Manufacturer Code: 20h – Device Code: 41h; (7)Packages – ECOPACK® compliant versions.

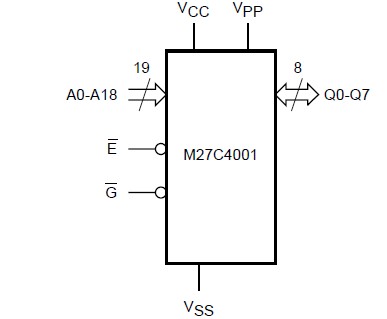

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C4001-10F1 |
STMicroelectronics |
EPROM 4M (512Kx8) 100ns |
Data Sheet |
