Product Summary

The HCPL-3120-000E is a 2.0 Amp output current igbt gate drive optocoupler. The HCPL-3120-000E consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by the HCPL-3120-000E makes it ideally suited for directly driving IGBTs with ratings up to 1200 V/100 A. For IGBTs with higher ratings, the HCPL-3120 can be used to drive a discrete power stage which drives the IGBT gate.

Parametrics

HCPL-3120-000E absolute maximum ratings: (1)Storage Temperature TS: -55 to 125 °C; (2)Operating Temperature TA: -40 to 100 °C; (3)Average Input Current IF(AVG): 25 mA; (4)Peak Transient Input Current (<1 ms pulse width, 300 pps)IF(TRAN): 1.0 A; (5)Reverse Input Voltage VR: 5 Volts; (6)High Peak Output Current IOH(PEAK): 2.5 A; (7)Low Peak Output Current IOL(PEAK): 2.5 A; (8)Supply Voltage (VCC - VEE): 0 35 Volts; (9)Output Voltage: VO 0 VCC Volts; (10)Output Power Dissipation PO: 250 mW; (11)Total Power Dissipation PT: 295 mW; (12)Lead Solder Temperature: 260°C for 10 sec., 1.6 mm below seating plane; (13)Solder Reflow Temperature: Profile See Package Outline Drawings section.

Features

HCPL-3120-000E features: (1)2.0 A Minimum Peak Output Current 15 kV/ms Minimum Common Mode Rejection (CMR)at VCM = 1500 V; (2)0.5 V Maximum Low Level Output Voltage (VOL)Eliminates Need for Negative Gate Drive; (3)ICC = 5 mA Maximum Supply Current; (4)Under Voltage Lock-Out Protection (UVLO)with Hysteresis; (5)Wide Operating VCC Range: 15 to 30 Volts; (6)500 ns Maximum Switching Speeds; (7)Industrial Temperature Range: -40°C to 100°C.

Diagrams

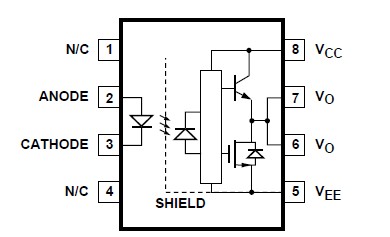

HCPL-3120-000E pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

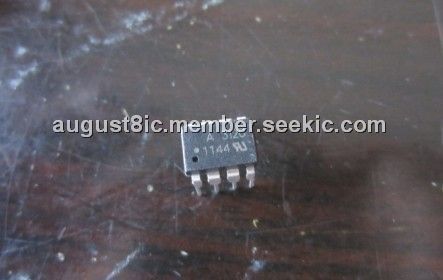

HCPL-3120-000E
HCPL-3120-000E

Avago Technologies

Logic Output Optocouplers 2.0A IGBT Gate Drive

Data Sheet

0-1: $1.62
1-25: $1.33
25-100: $1.18
100-250: $1.06
