Product Summary

The SJPB-D6VR is a Schottky Barrier Diode, and has achieved low leakage current and low VF by selecting the best barrier metal.

Parametrics

SJPB-D6VR absolute maximum ratings: (1)Transient Peak Reverse Voltage VRSM: 60V; (2)Peak Reverse Voltage VRM: 60V; (3)Average Forward Current IF(AV): 1.0A; (4)Peak Surge Forward Current IFSM: 20A; (5)I2t Limiting Value I2t: 2.0 A2s 1msec<t<10msec; (6)Junction Temperature Tj: -40 to +150℃; (7)Storage Temperature Tstg: -40 to +150℃．

Features

SJPB-D6VR features: (1)Super-high speed & low noise switching; (2)Low forward voltage drop.

Diagrams

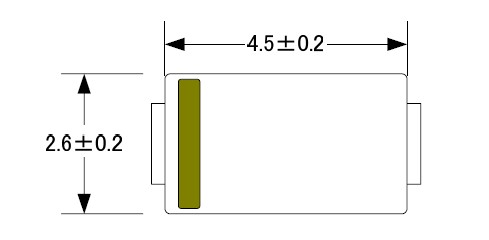

SJPB-D6VR dimension
