Product Summary

The SJPX-F2VR is a Schottky Barrier Diode, and has achieved low leakage current and low VF by selecting the best barrier metal.

Parametrics

SJPX-F2VR absolute maximum ratings: (1)Transient Peak Reverse Voltage VRSM: 200V; (2)Peak Reverse Voltage VRM: 200V; (3)Average Forward Current IF(AV): 1.5A; (4)Peak Surge Forward Current IFSM: 30A; (5)I2t Limiting Value I2t: 4.5 A2s 1msec<t<10msec; (6)Junction Temperature Tj: -40 to +150℃; (7)Storage Temperature Tstg: -40 to +150℃．

Features

SJPX-F2VR features: (1)Super-high speed & low noise switching; (2)Low forward voltage drop.

Diagrams

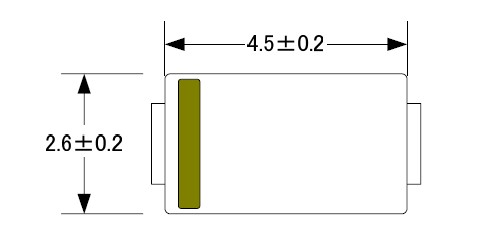

SJPX-F2VR dimension
