Product Summary
The CLC014AJE/NOPB is an adaptive cable equalizer. The device is a low-cost monolithic solution for equalizing data transmitted over cable (or any media with similar dispersive loss characteristics). The CLC014AJE/NOPB simplifies the task of high-speed data recovery with a one-chip solution and a minimal number of external components. The equalizer automatically adapts to equalize any cable length from zero meters to lengths that attenuate the signal by 40 dB at 200 MHz. The applications of the CLC014AJE/NOPB include SMPTE 259M serial digital interfaces: NTSC/PAL, 4:2:2 component and wide screen; also 540 Mbps (4:4:4:4), Serial digital video routing and distribution, Serial digital data equalization and reception and Data recovery equalization: ATM, CAD networks, medical, set top terminals, industrial video networks.
Parametrics
CLC014AJE/NOPB absolute maximum ratings: (1)Supply Voltage (VCC–VEE): -0.3V, +6.5V; (2)Maximum Junction Temperature: +150℃; (3)Storage Temperature Range: -65 to +150℃; (4)Lead Temperature (Soldering 4 sec.): +260℃; (5)ESD Rating: <500V; (6)θJA 14-Pin SOIC (AJE): 95℃/W; (7)MTTF (based on limited life test data): 4.8 x 107hours.
Features
CLC014AJE/NOPB features: (1)Automatic equalization of coaxial and twisted pair cables; (2)Carrier detection and output mute; (3)Output eye monitor; (4)Single supply operation: +5V or 5.2V; (5)Single-ended or differential input; (6)Low cost.

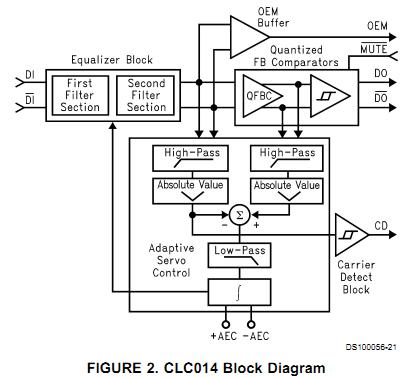

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CLC014AJE/NOPB |
|
IC CABLE EQUALIZER ADAPTV 14SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
