Product Summary

The LB1640N is a motor driver IC with a forward/reverse control feature. The LB1640N is optimal for driving motors used in front-loading VCRs and auto-reverse cassette decks.

Parametrics

LB1640N absolute maximum ratings: (1) Maximum supply voltage Vcc: 20V; (2) Input voltage VIN: -0.3 to Vcc; (3) Output current IOmax: 1.6A ( t=5ms, with cycle time of 5 sec. or more) ; (4) Allowable power dissipation Pd max: 2.5W (No heat sink) , 7w (When using heat sink) ; (5) Operating temperature Topr: -25 to +75°C; (6) Storage temperature Tstg: -55 to +125°C.

Features

LB1640N features: (1) Brake function on chip; (2) Dash current absorption diode on chip; (3) Broad operating voltage range (4 to 18V) ; (4) Direct drive made possible by TTL.

Diagrams

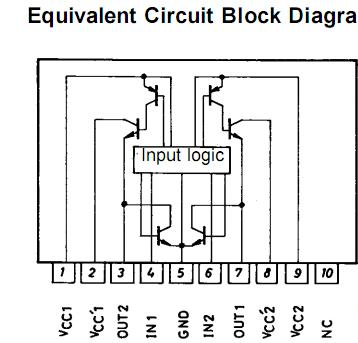

LB1640N Block Diagram
