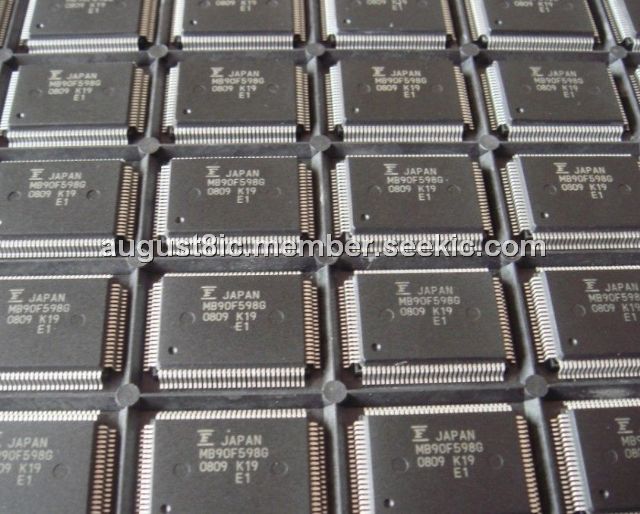

MB90F598GPF-GE1

Product Summary

The MB90F598GPF-GE1 is a 16-bit Proprietary Microcontroller. The MB90F598GPF-GE1 is especially designed for automotive and industrial applications. Its main features are two on board CAN Interfaces, which conform to V2.0 Part A and Part B, while supporting a very flexible message buffer scheme and so offering more functions than a normal full CAN approach. The instruction set of F2MC-16LX CPU core inherits an AT architecture of the F2MC2 family with additional instruction sets for high-level languages, extended addressing mode, enhanced multiplication/division instructions, and enhanced bit manipulation instructions. The MB90F598GPF-GE1 has a 32-bit accumulator for processing long word data.

Parametrics

MB90F598GPF-GE1 absolute maximum ratings: (1)Input voltage VI: VSS - 0.3 to VSS + 6.0 V; (2)Output voltage VO: VSS - 0.3 to VSS + 6.0 V; (3)Maximum Clamp Current ICLAMP: -2.0 to 2.0 mA; (4)Maximum Total Clamp Current: 20 mA; (5)Max. output current: 15 mA; (6)Avg. output current: 4 mA; (7)Max. output current: 40 mA; (8)Avg. output current: 30 mA; (9)Max. overall output current: 100 mA; (10)Max. overall output current: 330 mA; (11)Avg. overall output current: 50 mA; (12)Avg. overall output current: 250 mA; (13)Max. output current: -15 mA; (14)Avg. output current: -4 mA; (15)H Max. output current: -40 mA; (16)H Avg. output current: -30 mA; (17)H Max. overall output current: -100 mA; (18)H Max. overall output current: -330 mA; (19)H Avg. overall output current: -50 mA; (20)H Avg. overall output current: -250 mA; (21)Power consumption PD: 500 mW; (22)Operating temperature TA: -40 +85 °C; (23)Storage temperature TSTG: -55 +150 °C.

Features

MB90F598GPF-GE1 features: (1)Rich data types (bit, byte, word, long word); (2)Rich addressing mode (23 types); (3)Enhanced signed multiplication/division instruction and RETI instruction functions; (4)Enhanced precision calculation realized by the 32-bit accumulator; (5)Program patch function (for two address pointers); (6)Enhanced execution speed: 4-byte instruction queue; (7)Enhanced interrupt function: 8 levels, 34 factors; (8)Automatic data transmission function independent of CPU operation; (9)Extended intelligent I/O service function (EI2OS): Up to 10 channels.

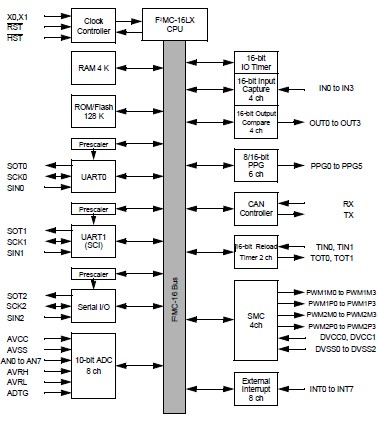

Diagrams
