Product Summary
The NE605D is a high performance monolithic low-power FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, muting. Applications of the NE605D include: celluar radio FMIF, high performance communications receivers, single converson VHF/UHF receivers, SCA receivers, RF level meter, spectrum analyzer, instrumentation, FSK and ASK and log amps.
Parametrics
NE605D absolute maximum ratings: (1) single supply voltage Vcc: 9V; (2) storage temperature range Tstg: -65 to +150°C; (3) operating ambient temperature range: 0 to +70°C; (4) Thermal impedance: 117°C/W.
Features
NE605D features: (1) low power consumption: 5.7mA typical at 6V; (2) mixer input to ＞500MHz; (3) Mixer conversion power gain of 13dB at 45MHz; (4) Mixer noise figure of 4.6dB at 45MHz; (5) Two audio outputs-muted and unmuted; (6) low external component count; suitable for crystal/ceramic/LC filters; (7) meets celluar radio specifications; (8) ESD hardened.

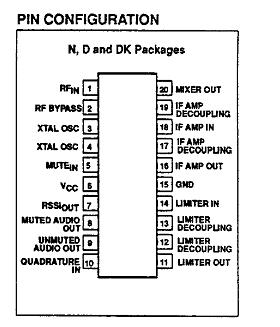

Diagrams
 |
