Product Summary
The P80C32IFAA is a high-performance microcontroller fabricated with Philips high-density CMOS technology. The P80C32IFAA combines the high speed and density characteristics of HMOS with the low power attributes of CMOS. Philips epitaxial substrate minimizes latch-up sensitivity. The P80C32IFAA contains an 8k × 8 EPROM and the 80C32 is ROMless. Both contain a 256 × 8 RAM, 32 I/O lines, three 16-bit counter/timers, a six-source, two-priority level nested interrupt structure, a serial I/O port for either multi-processor communications, I/O expansion or full duplex UART, and on-chip oscillator and clock circuits.
Parametrics
P80C32IFAA absolute maximum ratings: (1)Operating temperature under bias: 0 to +70 or-40 to +85 ℃; (2)Storage temperature range: -65 to +150 ℃; (3)Voltage on EA/VPP pin to VSS: 0 to +13.0 V; (4)Voltage on any other pin to VSS: -0.5 to +6.5 V; (5)Maximum IOL per I/O pin: 15 mA; (6)Power dissipation (based on package heat transfer limitations, not device power consumption): 1.5 W.
Features
P80C32IFAA features: (1)Memory addressing capability: 64k ROM and 64k RAM; (2)Power control modes: Idle mode, Power-down mode; (3)CMOS and TTL compatible; (4)Three speed ranges: 3.5 to 16MHz, 3.5 to 24MHz, 3.5 to 33MHz; (5)Five package styles; (6)Extended temperature ranges; (7)OTP package available.

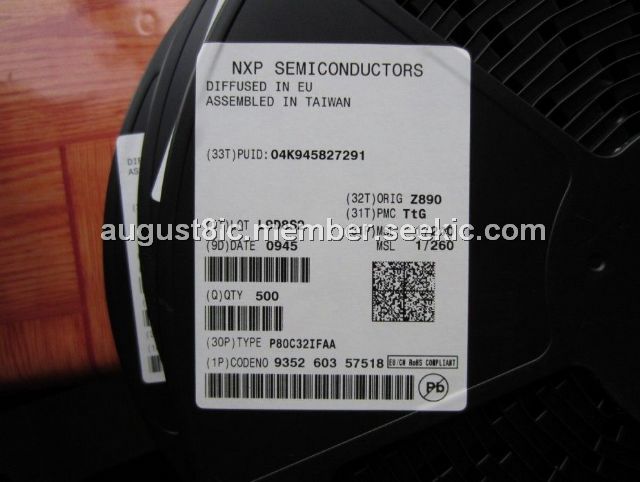

Diagrams
 |
