Product Summary

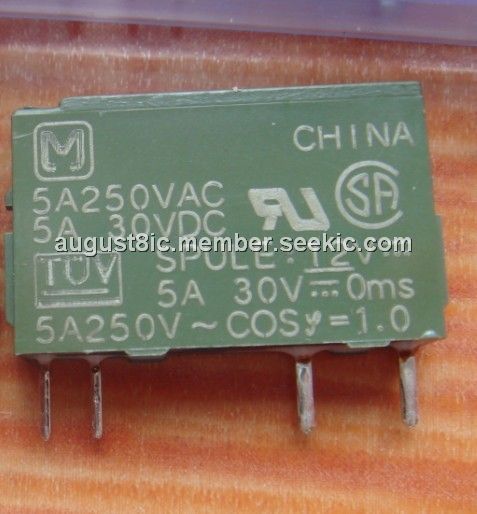

The PA1A-12V is a slim power relay.

Parametrics

PA1A-12V absolute maximum ratings: (1)Nominal switching capacity: 5 A 250 V AC, 5 A 30 V DC; (2)Maximum switching power: 750 VA, 90 W; (3)Maximum switching voltage: 250 V AC, 110 V DC; (4)Max. switching current: 5 A; (5)Ambient temp.: –40 ℃ to +70 ℃.

Features

PA1A-12V features: (1)Slim size (width 5 mm.197 inch, height 12.5 mm.492 inch)permits higher density mounting; (2)Wide switching capacity: Control from 100 mA 100 mV to 5 A 250 V AC, 30 V DC; (3)High sensitivity: 120 mW (Nominal)(5 to 18 V DC type); (4)High surge voltage (4000 V)and high breakdown voltage (2000 V); (5)Shock & vibration resistance (functional): Min. 147m/s2 {15 G}; (6)SIL (single in line)terminal layout; (7)Reinforced according to IEC1131-2.

Diagrams

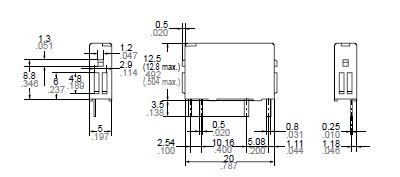

PA1A-12V pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PA1A-12V
PA1A-12V
Panasonic Electric Works
General Purpose / Industrial Relays 5A 12VDC SPST-NO NON-LATCHING
Data Sheet
0-1: $4.82
1-25: $4.43
25-50: $3.94
50-100: $3.34
