Product Summary
The MIC37302WR TR is a 3.0A low-dropout linear voltage regulator that provides a low-voltage, high-current output with a minimum number of external components. The MIC37302WR TR offers high precision, ultra-low-dropout (500mV overtemperature), and low-ground current. Features of the MIC37302WR TR LDO include thermal and current-limit protection, and reverse-current protection. Logic enable and error flag pins are available on the 5-pin version.
Parametrics
MIC37302WR TR absolute maximum ratings: (1)Supply Voltage (VIN): 6.5V; (2)Enable Input Voltage (VEN): 6.5V; (3)Power Dissipation (PD): Internally Limited; (4)Junction Temperature (TJ): –40℃ ≤ TJ ≤ +125℃; (5)Storage Temperature (TS): –65℃ ≤ TJ ≤ +150℃; (6)Lead Temperature (soldering, 5sec): 260℃; (7)ESD Rating: 2kV; (8)Supply Voltage (VIN): 2.25V to 6.0V; (9)Enable Input Voltage (VEN): 0V to 6.0V; (10)Junction Temperature (TJ): –40℃ ≤ TJ ≤ +125℃.
Features
MIC37302WR TR features: (1)3.0A minimum guaranteed output current; (2)500mV maximum dropout-voltage overtemperature Ideal for 3.0V to 2.5V conversion, Ideal for 2.5V to 1.8V, 1.65V, or 1.5V conversion; (3)Stable with ceramic or tantalum capacitor; (4)Wide input voltage range – VIN: 2.25V to 6.0V; (5)+1.0% initial output tolerance; (6)Fixed and adjustable output voltages: 5-pin adjustable voltage; (7)Excellent line and load regulation specifications; (8)Thermal shutdown and current-limit protection; (9)Reverse-leakage protection; (10)Low profile S-Pak package.

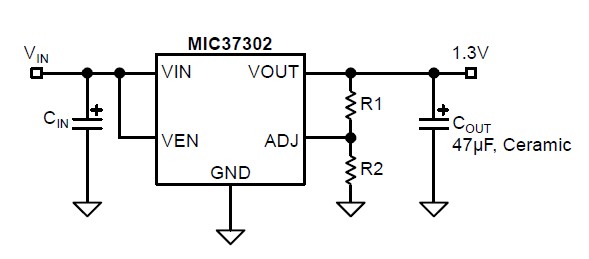

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

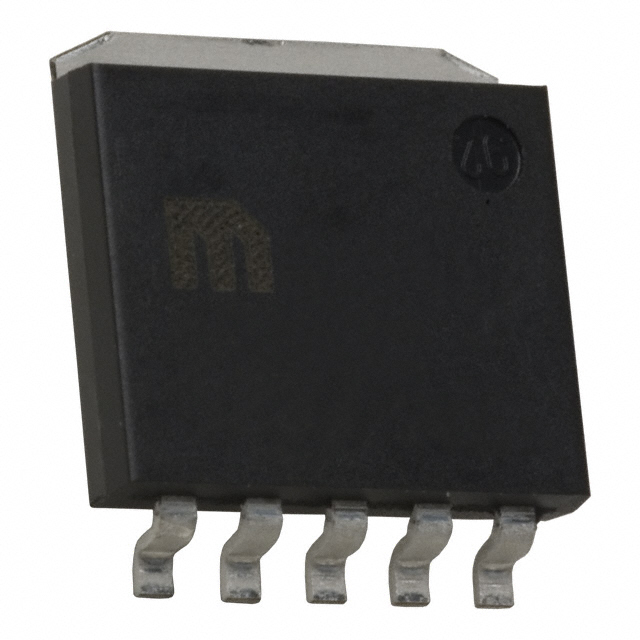

![]() MIC37302WR TR |
![]() |
![]() IC REG LDO ADJ 3A 5SPAK |
![]() Data Sheet |
![]()
|
|
||||||||||||||
