Product Summary
The TS5A3159DCKR is a single-pole double throw (SPDT) analog switch that is designed to operate from 1.65-V to 5.5-V. The TS5A3159DCKR offers a low ON-state resistance and an excellent ON-resistance, matching with the break-before-make feature to prevent signal distortion during the transferring of a signal from one channel to another. Appications of the TS5A3159DCKR include: Cell Phones, PDAs and Portable Instrumentation.
Parametrics
TS5A3159DCKR absolute maximum ratings: (1) Supply voltage range V+: -0.5 to 6.5V; (2) Analog voltage range VNO, VCOM: -0.5 to V+ 0.5V; (3) Analog port diode current II/OK: ±50mA (VNO , VCOM < 0 or V NO, VCMO > V+) ; (4) ON-state switch current INO , ICMO: ±200mA (VNO, VCOM=0 to V+) ; (5) ON-state peak switch current: ±400mA; (6) Digital input voltage range VIN: -0.5 to 6.5V; (7) Digital input clamp current IIL: -50mA (VIN<0) ; (8) Continuous current through V+ or GND: ±100mA; (9) Package thermal impedance θJA: 165°C; (10) Storage temperature range Tstg: -65 to 150°C.
Features
TS5A3159DCKR features: (1) Specified Break-Before-Make Switching; (2) Low ON-State Resistance (1Ω) ; (3) Control Inputs Are 5-V Tolerant; (4) Low Charge Injection; (5) Excellent ON-Resistance Matching; (6) Low Total Harmonic Distortion; (7) 1.65-V to 5.5-V Single-Supply Operation; (8) Latch-Up Performance Exceeds 100mA Per JESD 78, Class II; (9) ESD Performance Tested Per JESD 22-2000-V Human-Body Model (A114-B, Class II)-1000-V Charged-Device Model (C101) .

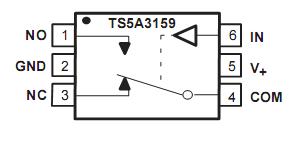

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TS5A3159DCKR |
Texas Instruments |
Analog Switch ICs 1-Ohm SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
|
TS5A3159DCKRE4 |
Texas Instruments |
Analog Switch ICs 1-Ohm SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
|
TS5A3159DCKRG4 |
Texas Instruments |
Analog Switch ICs 1O SPDT Ana Sw |
Data Sheet |
|
|
||||||||||||
