Product Summary

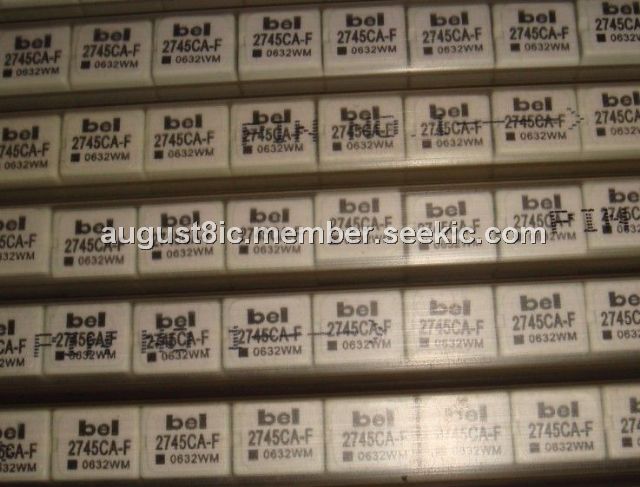

The 2745CA-F is a high frequency magnetics T1/E1 Single Through Hole Transformer.

Parametrics

2745CA-F absolute maximum ratings: (1)Primary Inductance: 0.92mH min; (2)Leakage Inductance: 0.7mH max; (3)DCR, Pri: 0.85Ωmax; Sec: 1.2Ωmax; (4)Interwinding Capacitance: 20pFmax; (5)Interwinding Breakdown Voltage: 1000Vrms min.

Features

2745CA-F features: (1)Operate as pulse transformers at DS1 and CEPT rates; (2)Perform impedance matching and voltage transformation for line transceivers; (3)Qualified per Bellcore TR-TSY-000357-1; (4)Compatible with water-soluble flux, total-immersion cleaning and machine insertion; (5)Meets IEC-695, 2-2 flammability requirements.

Diagrams

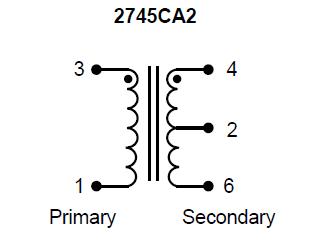

2745CA-F block diagram
