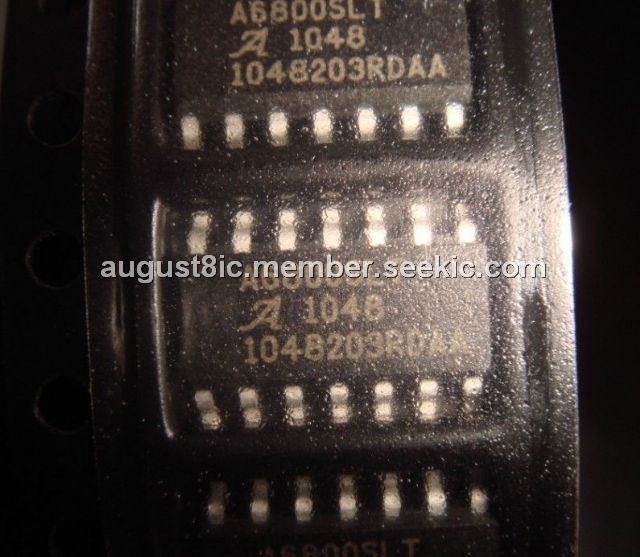

Product Summary
The A6800SLTR-T is a latched-input BiMOS IC merges high-current, high-voltage outputs with CMOS logic. The CMOS input section consists of 4 or 8 data (“D” type) latches with associated common CLEAR, STROBE, and OUTPUT ENABLE circuitry. The power outputs are bipolar NPN Darlingtons. This merged technology provides versatile, flexible interface. The BiMOS power interface IC greatly benefits the simplification of computer or microprocessor I/O. The A6800SLTR-T contains four latched drivers. The applications of the A6800SLTR-T include Relays, Lamps, Solenoids, Small dc motors.
Parametrics
A6800SLTR-T absolute maximum ratings: (1)Output Voltage, VCE: 50 V; (2)Supply Voltage, VDD: 7 V; (3)Input Voltage Range, VIN: -0.3 V to VDD +0.3 V; (4)Continuous Collector Current, IC: 600 mA; (5)Operating Temperature Range, Ambient Temperature, TA: -20℃ to +85℃; Storage Temperature, TS: -55℃ to +150℃.
Features
A6800SLTR-T features: (1)3.3 V to 5 V logic supply range; (2)To 10 MHz data input rate; (3)High-voltage, high-current outputs; (4)Darlington current-sink outputs, with improved low-saturation voltages; (5)CMOS, TTL compatible inputs; (6)Output transient protection; (7)Internal pull-down resistors; (8)Low-power CMOS latches.

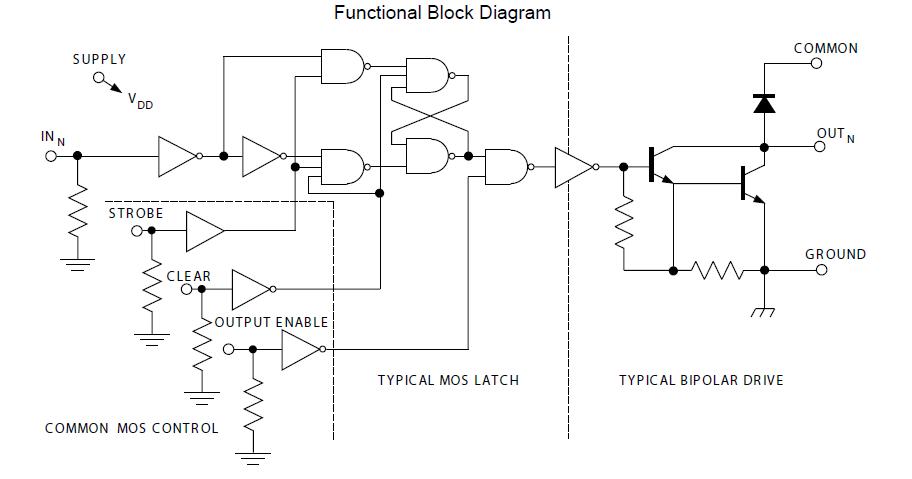

Diagrams
