Product Summary

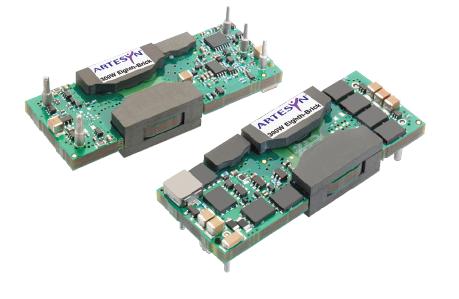

The IBC17AEW4812-REJ is a 2nd Generation IBC.

Parametrics

IBC17AEW4812-REJ absolute maximum ratings: (1)Total Power: 200 - 300W; (2)Input Voltage: 36 - 75Vdc; (3)Input current: Remote OFF: 6 mA typ.; (4)Operating ambient temperature: -40 ℃ to +85 ℃; (5)Non-operating: -55 ℃ to +125 ℃.


Features

IBC17AEW4812-REJ features: (1)48 V input with isolated 12 V output; (2)Ultra-high efficiency, 95.5% 12 V @ 25 A; (3)Unprecedented usable output power levels; (4)High power density (362 W/in3)open-frame technology; (5)Wide operating ambient temperature range; (6)Industry standard eighth-brick footprint and pinout; (7)Low profile, 0.40 (10.2 mm); (8)Meets basic insulation requirements of EN60950-1; (9)Remote ON/OFF and over­temperature protection; (10)Available RoHS compliant; (11)2 year warranty.

Diagrams

IBC17AEW4812-REJ dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

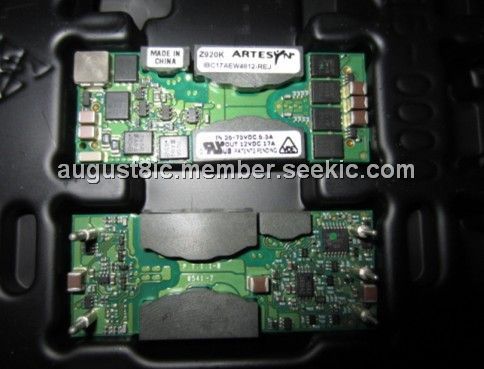

IBC17AEW4812-REJ
IBC17AEW4812-REJ

Emerson / Astec Power

DC/DC Converters 200W 48VDC 12V 17A Package Height .45in

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

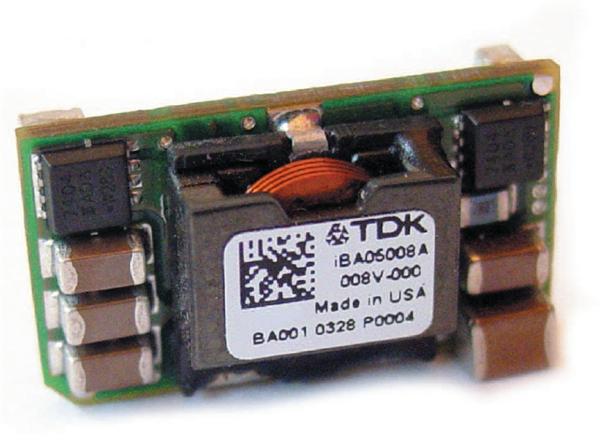

iBC12007A008V-001-R
iBC12007A008V-001-R

TDK-Lambda

DC/DC Converters 35W 0.8V to 5V 7A

Data Sheet

0-1: $15.60
IBC17
IBC17

Other


Data Sheet

Negotiable
IBC17AEW4812
IBC17AEW4812

Other


Data Sheet

Negotiable
IBC17AEW4812-AJ
IBC17AEW4812-AJ

Emerson / Astec Power

DC/DC Converters 200W 12V 17A 1/8-Brk

Data Sheet

Negotiable
IBC17AEW4812-EJ
IBC17AEW4812-EJ

Emerson / Astec Power

DC/DC Converters 200W 36-75Vin Single 12V 17A 1/8 Brick

Data Sheet

Negotiable
IBC17AEW4812-ENJ
IBC17AEW4812-ENJ

Emerson / Astec Power

DC/DC Converters 200W 36-75Vin Single 12V 17A

Data Sheet

Negotiable
