CY7C63813-SXC

CY7C63813-SXC, 8-bit flash programmable microcontroller, SO, 7V, 70mA, 50mW, Cypress Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.61~0.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.61~0.65

PartNumber:: CY7C63813-SXC

Brand:: Cypress Semiconductor - Cypress | Pack: SO | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Melody's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-12

From Other Seller

Part Number:CY7C63813-SXC
US $0.61 - 0.65
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

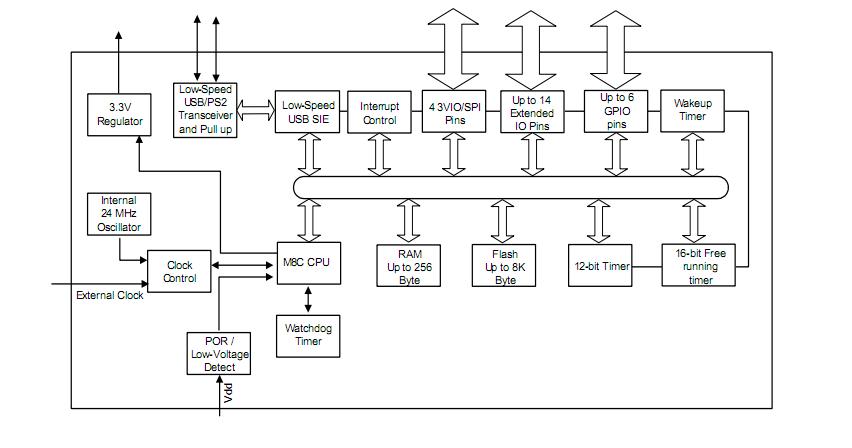

The CY7C63813-SXC is an 8-bit flash programmable microcontroller with an integrated low speed USB interface. The CY7C63813-SXC is optimized specifically for USB and PS/2 operations, although the microcontrollers may be used for a variety of other embedded applications. The applications of the CY7C63813-SXC include: PC HID devices, Mice (optomechanical, optical, trackball); Gaming, Joysticks, Game pad; General purpose, Barcode scanners, POS terminal, Consumer electronics, Toys, Remote controls, Security dongles.

Parametrics

CY7C63813-SXC aboslute maximum ratings: (1)Storage Temperature: –40℃ to +90℃; (2)Ambient Temperature with Power Applied: –0℃ to +70℃; (3)Supply Voltage on VCC Relative to VSS: –0.5 V to +7.0 V; (4)DC Input Voltage: –0.5 V to + VCC + 0.5 V; (5)Maximum Total Sink Current into Port 0 and Port 1 pins: 70 mA; (6)Maximum Total Source Output Current into GPIO Pins: 30 mA; (7)Maximum On-chip Power Dissipation on any GPIO Pin: 50 mW; (8)Power Dissipation: 300 mW; (9)Static Discharge Voltage: 2200 V; (10)Latch Up Current: 200 mA.

Features

CY7C63813-SXC features: (1)Two registers each for two input pins; (2)Separate registers for rising and falling edge capture; (3)Simplifies the interface to RF inputs for wireless applications; (4)12-bit Programmable Interval Timer with interrupts; (5)Advanced development tools based on Cypress PSoC tools; (6)Watchdog timer (WDT); (7)Low-voltage detection with user configurable threshold voltages; (8)Operating voltage from 4.0 V to 5.5 V DC; (9)Operating temperature from 0–70℃; (10)Available in 16 and 18-pin PDIP; 16, 18, and 24-pin SOIC.
