Product Summary

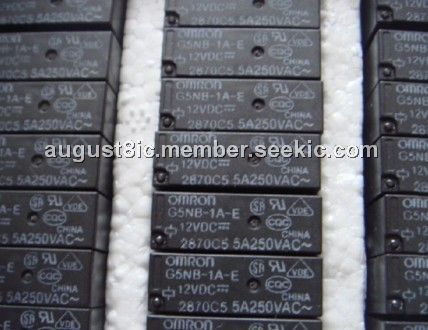

The G5NB-1A-E-DC12 is a slim compact relay with 3 A switching capability and 10-kv impulse withstand voltage
Parametrics
G5NB-1A-E-DC12 absolute maximum ratings: (1)Rated voltage: 5 VDC 12 VDC 18 VDC 24 VDC; (2)Rated current: 40.0 mA 16.7 mA 11.1 mA 8.3 mA; (3)Coil resistance: 125 Ω 720 Ω 1,620 Ω 2,880 Ω; (4)Must operate voltage: 75% of rated voltage (max.); (5)Must release voltage: 10% of rated voltage (min.); (6)Max. voltage Standard: 180% of rated voltage (at 23℃); (7)High-capacity: 170% of rated voltage (at 23℃); (8)Power consumption Approx.: 200 mW; (9)Ambient temperature Operating: –40℃ to 70℃ (with no icing or condensation).
Features
G5NB-1A-E-DC12 features: (1)Max size 20.5L x 7.2 W x 15.3 W mm; (2)Standard models switch up to 3 A High-capacity models switch up to 5 A (AC loads only); (3)Low power consumption (200 mW); (4)Semi-sealed and sealed types available; (5)UL recognized / CSA certified. VDE Approved; (6)RoHS Compliant.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

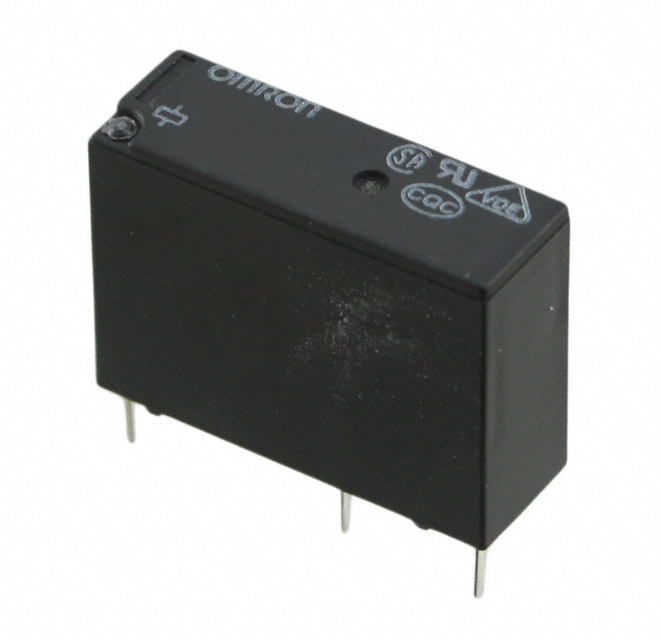

G5NB-1A-E-DC12 |
Omron Electronics |
General Purpose / Industrial Relays SPST-NO Flux-Tight 12VDC High-Capacity |
Data Sheet |
|
|
|||||||||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
G5NB-1A DC12 |
RELAY GEN PURPOSE SPST 3A 12V |
Data Sheet |
|
|
||||||||||||||||||||
G5NB-1A DC18 |
Omron Electronics |
General Purpose / Industrial Relays Power PCB Relay |
Data Sheet |
|
|
|||||||||||||||||||
G5NB-1A DC24 |
RELAY GEN PURPOSE SPST 3A 24V |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
G5NB-1A DC5 |
RELAY GENERAL PURPOSE SPST 3A 5V |
Data Sheet |
|
|
||||||||||||||||||||
G5NB-1A DC9 |
Omron Electronics |
General Purpose / Industrial Relays Power PCB Relay |
Data Sheet |
|
|
|||||||||||||||||||
G5NB-1A4 DC12 |
Omron Electronics |
General Purpose / Industrial Relays Power PCB Relay |
Data Sheet |
|
|
