Product Summary

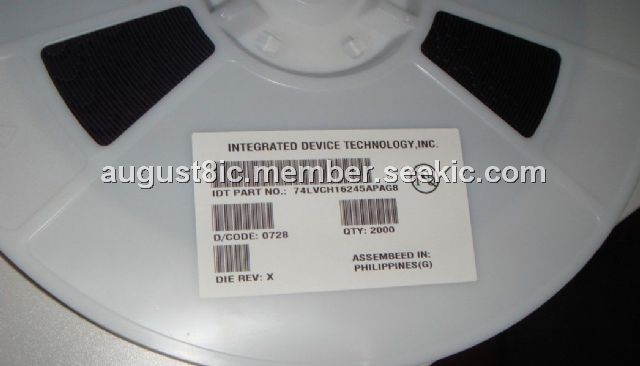

The IDT74LVCH16245APAG8 is a 16-bit bus transceiver. The IDT74LVCH16245APAG8 is built using advanced dual metal CMOS technology. The IDT74LVCH16245APAG8 is ideal for asynchronous communication between two busses (A and B). The Direction and Output Enable controls are designed to operate this device as either two independent 8-bit transceivers or one 16-bit transceiver. The direction control pin (DIR) controls the direction of data flow. The output enable pin (OE) overrides the direction control and disables both ports. All inputs are designed with hysteresis for improved noise margin.
Parametrics
IDT74LVCH16245APAG8 absolute maximum ratings: (1)VTERM Terminal Voltage with Respect to GND: –0.5 to +6.5 V; (2)TSTG Storage Temperature: –65 to +150 ℃; (3)IOUT DC Output Current: –50 to +50 mA; (4)IIK Continuous Clamp Current: –50 mA; (5)ICC Continuous Current through each: ±100 mA.
Features
IDT74LVCH16245APAG8 features: (1)Typical tSK(o)(Output Skew)< 250ps; (2)ESD > 2000V per MIL-STD, Method 3015; > 200V using machine model (C = 200pF, R = 0); (3)VCC = 3.3V ± 0.3V, Normal Range; (4)VCC = 2.7V to 3.6V, Extended Range; (5)CMOS power levels (0.4μ W typ. static); (6)All inputs, outputs, and I/O are 5V tolerant; (7)Available in SSOP, TSSOP, and TVSOP packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IDT74LVCH16245APAG8 |
|
IC BUS TRSCVR 3-ST 16BIT 48TSSOP |
Data Sheet |
|
|
||||||
