K9K1G08U0M-YIB0

Product Summary

The K9K1G08U0M-YIB0 is a 128M(134,217,728)x8bit NAND Flash Memory with a spare 4.096K(4,194,304)x8bit. Its NAND cell provides the most cost-effective solution for the solid state mass storage market. A program operation can be performed in typical 200ms on the 528-byte page and an erase operation can be performed in typical 2ms on a 16K-byte block. Data in the page can be read out at 50ns cycle time per byte. The I/O pins serve as the ports for address and data input/output as well as command inputs. The on-chip write controller automates all program and erase functions including pulse repetition, where required, and internal verification and margining of data. Even the write-intensive systems can take advantage of the K9K1G08U0M-YIB0 extended reliability of 100K program/erase cycles by providing ECC(Error Correcting Code) with real time mapping-out algorithm. The K9K1G08U0M-YIB0 is an optimum solution for large nonvolatile storage applications such as solid state file storage and other portable applications requiring non-volatility.

Parametrics

K9K1G08U0M-YIB0 absolute maximum ratings: : (1)Voltage on any pin relative to VSS: VIN -0.6 to + 4.6 V; (2)Voltage on any pin relative to VSS: VCC -0.6 to + 4.6V; (3)Temperature Under Bias: -40 to +125℃; (4)Storage Temperature TSTG: -65 to +150 ℃:; (5)Operating Current: 30mA.

Features

K9K1G08U0M-YIB0 features: (1)Voltage Supply : 2.7V~3.6V; (2)Organization - Memory Cell Array : (128M + 4,096K)bit x 8bit - Data Register : (512 + 16)bit x8bit multipled by eight planes; (3)Automatic Program and Erase - Page Program : (512 + 16)Byte - Block Erase : (16K + 512)Byte; (4)528-Byte Page Read Operation - Random Access : 12ms(Max.)- Serial Page Access : 50ns(Min.); (5)Fast Write Cycle Time - Program time : 200ms(Typ.)- Block Erase Time : 2ms(Typ.); (6)Command/Address/Data Multiplexed I/O Port; (7)Hardware Data Protection - Program/Erase Lockout During Power Transitions; (8)Reliable CMOS Floating-Gate Technology - Endurance : 100K Program/Erase Cycles - Data Retention : 10 Years; (9)Command Register Operation; (10)Intelligent Copy-Back Operation; (11)Package : - K9K1G08U0M-YCB0, K9K1G08U0M-YIB0 : 48 - Pin TSOP I (12 x 20 / 0.5 mm pitch); (12)Simultaneous Four Page/Block Program/Erase.

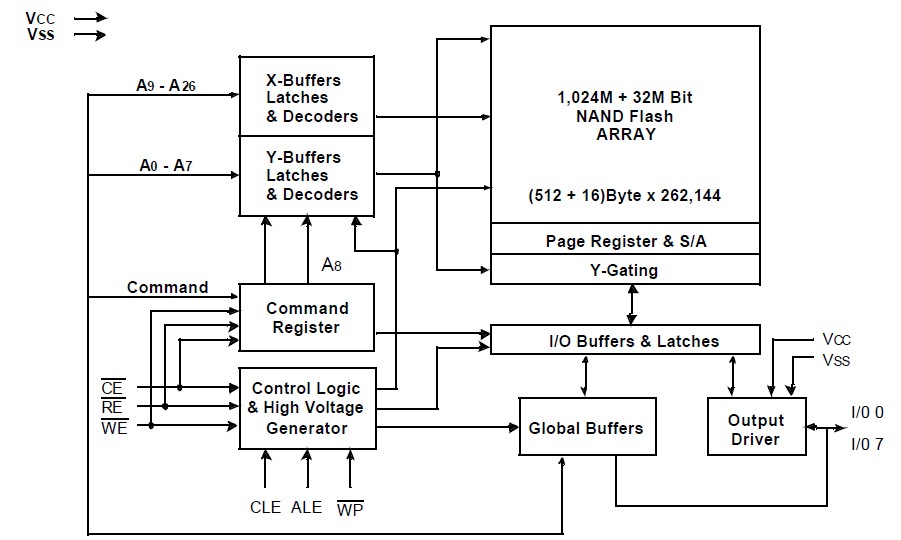

Diagrams
