Product Summary

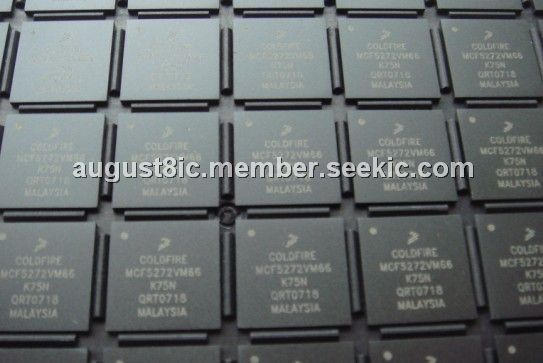

The MCF5272VM66-K75N is a coldFire integrated microprocessor. The MCF5272VM66-K75N is the most highly-integrated V2 standard product, containing a variety of communications and general-purpose peripherals. The MCF5272VM66-K75N is designed to maximize code density and performance while minimizing die area.

Parametrics

MCF5272VM66-K75N absolute maximum ratings: (1)Supply voltage VDD: –0.3 to + 4.0 V; (2)Maximum operating voltage VDD: +3.6 V; (3)Minimum operating voltage VDD: +3.0 V; (4)Input voltage Vin: –0.5 to +5.5 V; (5)Storage temperature range Tstg: –55 to 150 ℃.

Features

MCF5272VM66-K75N features: (1)32-bit address and data path on-chip; (2)66-MHz processor core and bus frequency; (3)Sixteen general-purpose 32-bit data and address registers; (4)Multiply-accumulate unit (MAC)for DSP and fast multiply operations; (5)4-Kbyte SRAM on CPU internal bus; (6)16-Kbyte ROM on CPU internal bus; (7)1-Kbyte instruction cache; (8)Fully-static operation with processor sleep and whole-chip stop modes; (9)Very rapid response to interrupts from the low-power sleep mode (wake-up feature); (10)Clock enable/disable for each peripheral when not used; (11)Software-controlled disable of external clock input for virtually zero power consumption (low-power stop mode).

Diagrams

MCF5272VM66-K75N pin connection
