Product Summary

The K9F1208R0C-JIB0 is a flash memory. Offered in 64Mx8bits, the K9F1208R0C-JIB0 is 512Mbit with spare 16Mbit capacity. The device is offered in 1.8V, 2.7V and 3.3V Vcc. Its NAND cell provides the most cost-effective solutIon for the solid state mass storage market. A program operation can be performed in typical 200μs on the 528-bytes and an erase operation can be performed in typical 2ms on a 16K-bytes block. Data in the page can be read out at 42ns cycle time per byte. The I/O pins serve as the ports for address and data input/output as well as command input. The on-chip write control automates all program and erase functions including pulse repetition, where required, and internal verification and margining of data. Even the write-intensive systems can take advantage of the K9F1208R0C-JIB0 extended reliability of 100K program/erase cycles by providing ECC(Error Correcting Code) with real time mapping-out algorithm. The K9F1208R0C-JIB0 is an optimum solution for large nonvolatile storage applications such as solid state file storage and other portable applications requiring non-volatility.

Parametrics

K9F1208R0C-JIB0 absolute maximum ratings: (1)Voltage on any pin relative to VSS VIN: -0.6 to +7.0 V; (2)Temperature Under Bias TBIAS: -10 to +125 ℃; (3)Storage Temperature TSTG: -65 to +150 ℃; (4)Short Circuit Output Current IOS: 5 mA.

Features

K9F1208R0C-JIB0 features: (1)Voltage Supply - 1.8V Device(K9F1208R0C): 1.65V ~ 1.95V - 2.7V Device(K9F1208B0C): 2.5V ~ 2.9V - 3.3V Device(K9F1208U0C): 2.7V ~ 3.6V; (2)Organization - Memory Cell Array : (64M + 2M)x 8bits - Data Register : (512 + 16)x 8bits; (3)Automatic Program and Erase - Page Program : (512 + 16)x 8bits - Block Erase : (16K + 512)Bytes; (4)Page Read Operation - Page Size : (512 + 16)Bytes - Random Access : 15μs(Max.)- Serial Page Access : 42ns(Min.); (5)Fast Write Cycle Time - Program time : 200μs(Typ.)- Block Erase Time : 2ms(Typ.); (6)Command/Address/Data Multiplexed I/O Port; (7)Hardware Data Protection; (8)- Program/Erase Lockout During Power Transitions.

Diagrams

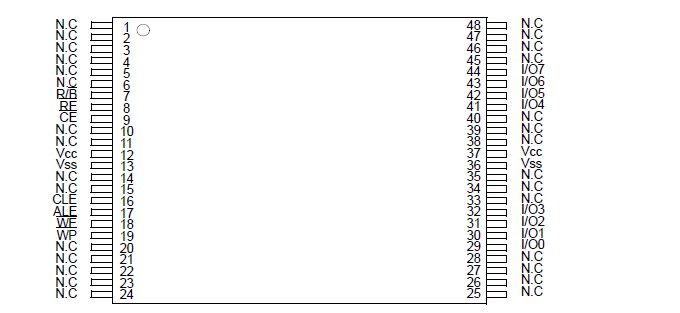

K9F1208R0C-JIB0 pin connection
