Product Summary
The MMA7260Q is a low cost capacitive micromachined accelerometer. The MMA7260Q features signal conditioning, a 1-pole low pass filter, temperature compensation and g-Select which allows for the selection among 4 sensitivities. Zero-g offset full scale span and filter cut-off are factory set and require no external devices. Includes a Sleep Mode that makes it ideal for handheld battery powered electronics.
Parametrics
MMA7260Q absolute maximum ratings: (1)Maximum Acceleration (all axis)gmax: ±2000 g; (2)Supply Voltage VDD: -0.3 to +3.6 V; (3)Drop Test: 1.8 m; (4)Storage Temperature Range Tstg: -40 to +125 °C; (5)Supply Current: 800μA.
Features
MMA7260Q features: (1)Selectable Sensitivity (1.5g/2g/4g/6g); (2)Low Current Consumption: 500 μA; (3)Sleep Mode: 3 μA; (4)Low Voltage Operation: 2.2 V3.6 V; (5)6mm x 6mm x 1.45mm QFN; (6)High Sensitivity (800 mV/g @1.5 g); (7)Fast Turn On Time; (8)High Sensitivity (1.5 g); (9)Integral Signal Conditioning with Low Pass Filter; (10)Robust Design, High Shocks Survivability; (11)Pb-Free Terminations; (12)Environmentally Preferred Package; (13)Low Cost.

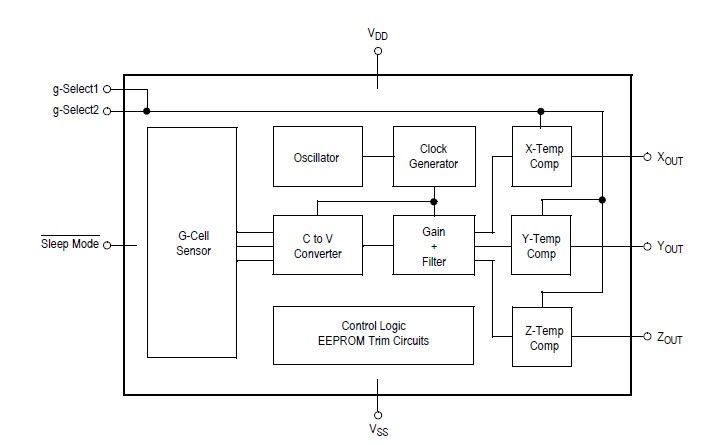

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MMA7260Q |
Freescale Semiconductor |
Board Mount Accelerometers 1.5G Sensor Accel 3 Axis |
Data Sheet |
Negotiable |
|
||||
|
MMA7260QR2 |
Freescale Semiconductor |
Board Mount Accelerometers 1.5G XYZ LEADS |
Data Sheet |
Negotiable |
|
||||
|
MMA7260QT |
Freescale Semiconductor |
Board Mount Accelerometers 1.5G XYZ QFN 16 LDS |
Data Sheet |
Negotiable |
|
||||
