Product Summary
The P0102BL5AA4 is a STMicroelectronics SCR. Thanks to highly sensitive triggering levels, the P0102BL5AA4SCR is suitable for all applications here the available gate current is limited such as stand-by mode power supplies, smoke and alarm detectors. Available in SOT-23, the P0102BL5AA4 provides optimized space saving on high density printed circuit boards.
Parametrics
P0102BL5AA4 absolute maximum ratings: (1) RMS on-state current (180° conduction angle) IT(RMS) : 0.25A(Tamb=30°C) ; (2) Average on-state current (180° conduction angle) IT (AV) : 0.17A (Tamb=30°C) ; (3) Non repetitive surge peak on-state current, tp=8.3ms, Tj-25°C: 7A, tp=10ms, Tj=25°C: 6A; (4) Critical rate of rise of on-state current IG=2XIGT, tr≤100ns; (5) Peak gate current, Tj=125°C, tp=20μs: 0.5A; (6) Average gate power dissipation PG (AV) , Tj=125°C: 0.02W; (7) Storage junction temperature range Tstg: -40 to +150°C
Operating junction temperature range Tj: -40 to +125°C.
Features
P0102BL5AA4 features: (1) IT (RMS) : 0.25A; (2) VDRM/VRRM: 200V; (3) IGT: 200μA.

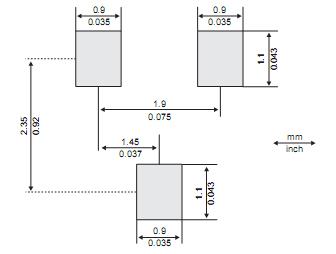

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 P0102BL 5AA4 |
STMicroelectronics |
SCRs 0.25 Amp 200 Volt |
Data Sheet |
|
|
||||||||||||
