Product Summary
The MAX488ECSA+T is a low-power transceiver for RS-485 and RS-422 communications in harsh environments. The MAX488ECSA+T input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. These parts contain one driver and one receiver. The MAX488ECSA+T features reduced slewrate driver that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. Drivers are short-circuit current limited, and are protected against excessive power dissipation by thermal shutdown circuitry that places their outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit.
Parametrics
MAX488ECSA+T absolute maximum ratings: (1)Supply Voltage (VCC): 12V; (2)Control Input Voltage (–R—E – , DE): -0.5V to (VCC + 0.5V); (3)Driver Input Voltage (DI): -0.5V to (VCC + 0.5V); (4)Driver Output Voltage (Y, Z; A, B): -8V to +12.5V; (5)Receiver Input Voltage (A, B): -8V to +12.5V; (6)Receiver Output Voltage (RO): -0.5V to (VCC + 0.5V); (7)Continuous Power Dissipation (TA = +70℃)8-Pin Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW, 14-Pin Plastic DIP (derate 10.00mW/℃ above +70℃): 800mW, 8-Pin SO (derate 5.88mW/℃ above +70℃): 471mW, 14-Pin SO (derate 8.33mW/℃ above +70℃): 667mW; (8)Operating Temperature Ranges: 0℃ to +70℃; (9)Storage Temperature Range : -65℃ to +160℃; (10)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX488ECSA+T features: (1)ESD Protection: ±15kV—Human Body Model; (2)Slew-Rate Limited for Error-Free Data Transmission; (3)Low Quiescent Current: 120μA; (4)-7V to +12V Common-Mode Input Voltage Range; (5)Three-State Outputs; (6)30ns Propagation Delays, 5ns Skew; (7)Full-Duplex and Half-Duplex Versions Available; (8)Allows up to 128 Transceivers on the Bus; (9)Current Limiting and Thermal Shutdown for Driver Overload Protection.

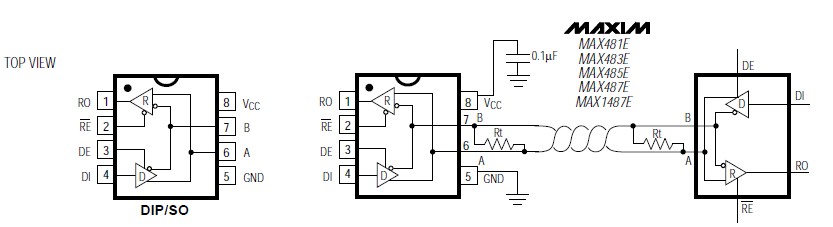

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX488ECSA+T |
Maxim Integrated Products |
RS-422/RS-485 Interface IC RS-485/RS-422 Transceiver |
Data Sheet |
|
|
||||||||||||
