Product Summary

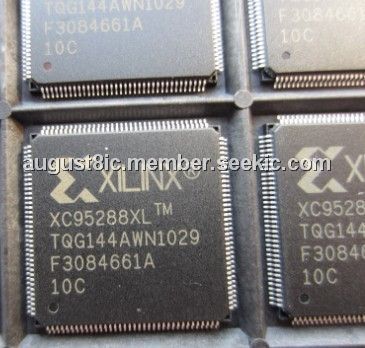

The XC95288XL-10TQG144C is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. The XC95288XL-10TQG144C is comprised of 16 54V18 Function Blocks, providing 6,400 usable gates with propagation delays of 6 ns.
Parametrics
XC95288XL-10TQG144C absolute maximum ratings: (1)VCC Supply voltage relative to GND: –0.5 to 4.0 V; (2)VIN Input voltage relative to GND: –0.5 to 5.5 V; (3)VTS Voltage applied to 3-state output: –0.5 to 5.5 V; (4)TSTG Storage temperature (ambient): –65 to +150 °C; (5)TSOL Maximum soldering temperature (10s @ 1/16 in. = 1.5 mm): +260°C; (6)TJ Junction temperature: +150°C; (7)IIL Input leakage current VCC = Max; VIN = GND or VCC: ±10 μA.
Features
XC95288XL-10TQG144C features: (1)6 ns pin-to-pin logic delays; (2)System frequency up to 208 MHz; (3)288 macrocells with 6,400 usable gates; (4)Fast concurrent programming; (5)Slew rate control on individual outputs; (6)Enhanced data security features; (7)Excellent quality and reliability; (8)Pin-compatible with 5V-core XC95288 device in the 208-pin HQFP package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC95288XL-10TQG144C |
|
IC CPLD 6.4K 288MCELL 144-TQFP |
