PI5A100WEX

improved Quad Single-pole double-throw (4SPDT) CMOS analog switch, 7V, 30mA, 650mw, SOIC-16

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.70~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.70~0.80

PartNumber:: PI5A100WEX

Brand:: Pericom Semiconductor Corporation - pericom | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Melody's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-22

From Other Seller

Part Number:PI5A100WEX
US $0.70 - 0.80
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

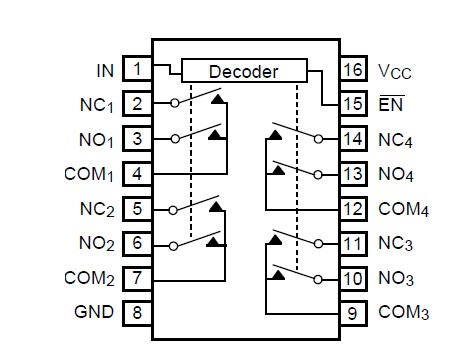

The PI5A100WEX is an improved Quad Single-pole double-throw (4SPDT) CMOS analog switch designed to operate with a single +2V to +6V power supply. The PI5A100WEX may be used to place all switches in a high-impedance state. This high precision PI5A100WEX is ideal for low-distortion audio, video, and data switching and routing. Each switch conducts current equally well in either direction when on. In the off state each switch blocks voltages up to the power-supply rails.

Parametrics

PI5A100WEX absolute maximum ratings: (1)Voltages Referenced to GndVCC:-0.5V to +7V; (2)VIN, VCOM, VNC, VNO: -0.5V to VCC +2V or 30mA, whichever occurs first; (3)Current (any terminal except COM, NO, NC): 30mA; (4)Current, COM, NO, NC (pulsed at 1ms, 10% duty cycle)120mA continuous power dissipation narrow soic & qsop (derate 8.7mw/℃ above +70℃): 650mw .; (5)Storage Temperature: -65℃ to +150℃ ; (6)Lead Temperature (soldering, 10s): +300℃.

Features

PI5A100WEX features: (1)Single Supply Operation (+2V to +6V); (2)Rail-to-Rail Analog Signal Dynamic Range; (3)Low On-Resistance (6Ω typ with 5V supply)Minimizes Distortion and Error Voltages; (4)On-Resistance Matching Between Channels, 0.4Ω Typ.; (5)On-Resistance Flatness, <2Ω Typ.; (6)Low Charge Injection Reduces Glitch Errors, Q = 6pC Typ.; (7)Replaces Mechanical Relays; (8)High Speed. tON, 8ns Typ.; (9)Low Crosstalk: -100dB @ 10 MHz; (10)Low Off-Isolation: -57dB @ 10 MHz; (11)Wide -3dB Bandwidth: 230 MHz; (12)High-Current Channel Capability: >100mA; (13)TTL/CMOS Logic Compatible; (14)Low Power Consumption (0.5μW typ.).
