Product Summary

The PIC18F87J11-I/PT is a low-voltage, general purpose microcontroller with the main traditional advantage of all PIC18 microcontrollers – namely, high computational performance and a rich feature set – at an extremely competitive price point. These features make the PIC18F87J11-I/PT a logical choice for many high-performance applications, where an extended peripheral feature set is required, and cost is a primary consideration.

Parametrics

PIC18F87J11-I/PT absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +100℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any digital only input pin or MCLR with respect to VSS (except VDD): -0.3V to 6.0V; (4)Voltage on any combined digital and analog pin with respect to VSS: -0.3V to (VDD + 0.3V); (5)Voltage on VDDCORE with respect to VSS: -0.3V to 2.75V; (6)Voltage on VDD with respect to VSS: -0.3V to 4.0V; (7)Total power dissipation (Note 1): 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD)(Note 2): ±0 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD)(Note 2): ±0 mA; (12)Maximum output current sunk by any PORTB and PORTC I/O pins: 25 mA; (13)Maximum output current sunk by any PORTD, PORTE and PORTJ I/O pins: 8 mA; (14)Maximum output current sunk by any PORTA, PORTF, PORTG and PORTH I/O pins: 2 mA; (15)Maximum output current sourced by any PORTB and PORTC I/O pins: 25 mA; (16)Maximum output current sourced by any PORTD, PORTE and PORTJ I/O pins: 8 mA; (17)Maximum output current sourced by any PORTA, PORTF, PORTG and PORTH I/O pins: 2 mA; (18)Maximum current sunk by all ports combined: 200 mA; (19)Maximum current sourced by all ports combined: 200 mA.

Features

PIC18F87J11-I/PT features: (1)Low-Power, High-Speed CMOS Flash Technology; (2)C Compiler Optimized Architecture for Re-Entrant Code; (3)Priority Levels for Interrupts; (4)Self-Programmable under Software Control; (5)8 x 8 Single-Cycle Hardware Multiplier; (6)Extended Watchdog Timer (WDT): - Programmable period from 4 ms to 131s; (7)Single-Supply In-Circuit Serial Programmin (ICSP)via Two Pins; (8)In-Circuit Debug (ICD)with 3 Breakpoints via Two Pins; (9)Operating Voltage Range of 2.0V to 3.6V; (10)5.5V Tolerant Inputs (digital only pins); (11)On-Chip 2.5V Regulator; (12)Flash Program Memory of 10000 Erase/Write Cycles and 20-Year Data Retention.

Diagrams

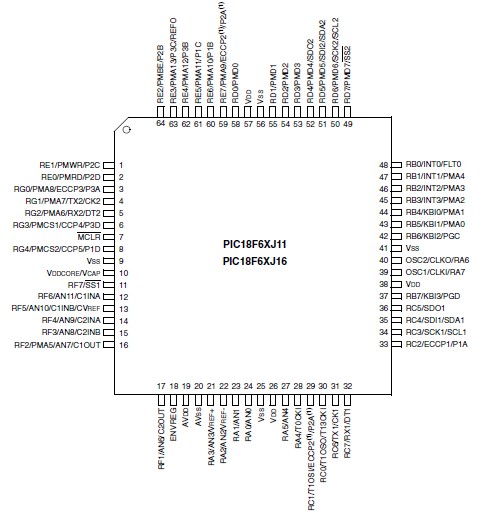

PIC18F87J11-I/PT pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC18F87J11-I/PT
PIC18F87J11-I/PT

Microchip Technology

8-bit Microcontrollers (MCU) 128KB FL 3936b RAM 10 MIPS 67 I/O

Data Sheet

0-1: $2.92
1-10: $2.33
10-25: $2.14
25-100: $1.94
