Product Summary

The PS9114-F3-A is an optically coupled high-speed isolator containing a GaAIAs LED on the input side and a photodiode and a signal processing circuit on the output side on one chip. The applications of PS9114-F3-A include factory automation network, measurement equipment, motor drive / inverter.

Parametrics

PS9114-F3-A absolute maximum ratings: (1)Forward Current: 30 mA; (2)Reverse Voltage: 5 V; (3)Supply Voltage: 7 V; (4)Output Voltage: 7 V; (5)Output Current: 25 mA; (6)Power Dissipation: 40 mA; (7)Isolation Voltage: 2500 Vr.m.s.; (8)Operating Temperature: -40 to +85 ℃; (9)Storage Temperature: -55 to +125 ℃.

Features

PS9114-F3-A features: (1)high common mode transient immunity: CMH, CML = ±20 kV/μs TYP; (2)small package: 5-pin SOP; (3)high speed: 10 Mbps; (4)pulse width distortion: |tPHL-tPLH| = 3 ns TYP; (5)high isolation voltage: BV = 2500 Vr.m.s.; (6)open collector output; (7)available in tape and reel: PS9114-F3, F4: 2500 pcs/reel.

Diagrams

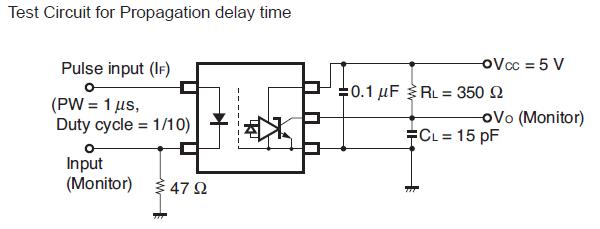

PS9114-F3-A block diagram
