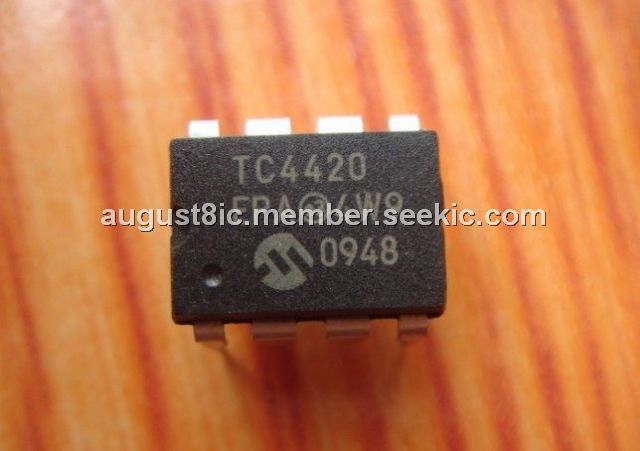

Product Summary
The TC4420EPA is a 6A (peak), single output MOSFET driver. The TC4420EPA is a non-inverting driver. The driver is fabricated in CMOS for lower power, more efficient operation versus bipolar drivers. The device has TTL-compatible inputs, which can be driven as high as VDD + 0.3V or as low as-5V without upset or damage to the device. This eliminates the need for external level shifting circuitry and its associated cost and size. The applications of the TC4420EPA include Switch-Mode Power Supplies, Motor Controls, Pulse Transformer Driver, Class D Switching Amplifiers.
Parametrics
TC4420EPA absolute maximum ratings: (1)Supply Voltage: +20V; (2)Input Voltage: -5V to > VDD; (3)Input Current (VIN > VDD): 50mA; (4)Power Dissipation, (TA ≤ 70℃), PDIP: 730mW; (5)Storage Temperature Range: -65℃ to +150℃; (6)Operating Temperature (Chip): +150℃; (7)Operating Temperature Range (Ambient), C Version: 0℃ to +70℃; (8)Lead Temperature (Soldering, 10 sec): +300℃.
Features
TC4420EPA features: (1)Latch-Up Protected: Will Withstand >1.5A Reverse Output Current; (2)Logic Input Will Withstand Negative Swing Up to 5V; (3)ESD Protected: 4kV; (4)Matched Rise and Fall Times: 25nsec; (5)High Peak Output Current: 6A Peak; (6)Wide Operating Range: 4.5V to 18V; (7)High Capacitive Load Drive: 10,000pF; (8)Short Delay Time: 55nsec Typ.; (9)Logic High Input, Any Voltage: 2.4V to VDD; (10)Low Supply Current With Logic "1" Input: 450μA; (11)Low Output Impedance: 2.5Ω; (12)Output Voltage Swing to Within 25mV of Ground or VDD.

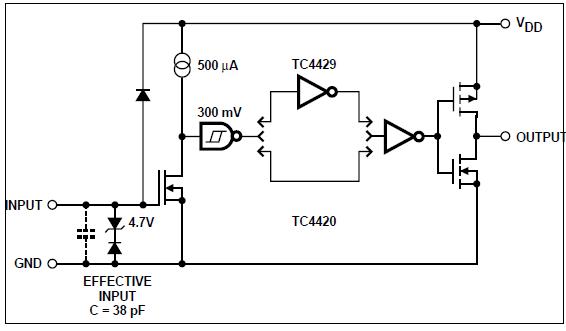

Diagrams
