Product Summary

The TL032AIDRG4 is a JFET-input operational amplifier offers improved dc and ac characteristics over the TL06x family of low-power BiFET operational amplifiers. On-chip zener trimming of offset voltage yields precision grades as low as 1.5 mV (TL031A) for greater accuracy in dc-coupled applications. The Texas Instruments improved BiFET process and optimized designs also yield improved bandwidths and slew rates without increased power consumption. The TL032AIDRG4 is pin-compatible with the TL06x and can be used to upgrade existing circuits or for optimal performance in new designs.

Parametrics

TL032AIDRG4 absolute maximum ratings: (1)Supply voltage (see Note 1): VCC+: 18 V; (2)VCC-: -18 V; (3)Differential input voltage, VID: ±30 V; (4)Input voltage, VI (any input): ±15 V; (5)Input current, II (each input): ±1 mA; (6)Output current, IO (each output): ±40 mA; (7)Total current into VCC+: 160 mA; (8)Total current out of VCC–: 160 mA; (9)Duration of short-circuit current at (or below) 25℃: Unlimited; (10)Continuous total power dissipation: See Dissipation Rating Table; (11)Package thermal impedance, θJA (see Note 5): D package (8 pin): 97℃/W; (12)Lead temperature 1,6 mm (1 /16 inch) from case for 10 seconds: D, N, P, or PW package: 260℃; (13)Lead temperature 1,6 mm (1 /16 inch) from case for 60 seconds: J or JG package: 300℃; (14)Case temperature for 60 seconds: FK package: 260℃; (15)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TL032AIDRG4 features: (1)Direct Upgrades for the TL06x Low-Power BiFETs; (2)Low Power Consumption, 6.5 mW/Channel Typ; (3)On-Chip Offset-Voltage Trimming for Improved DC Performance (1.5 mV, TL031A); (4)Higher Slew Rate and Bandwidth Without Increased Power Consumption; (5)Available in TSSOP for Small Form-Factor Designs.

Diagrams

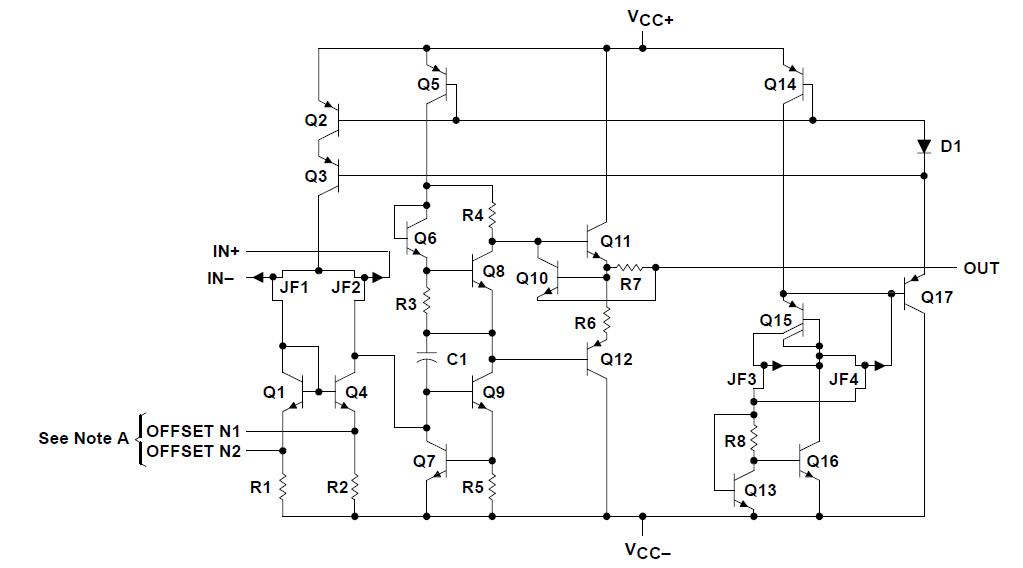

TL032AIDRG4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TL032AIDRG4
TL032AIDRG4
Texas Instruments
Operational Amplifiers - Op Amps Enh-JFET Lo-Pwr Lo- Offset Dual Op Amp
Data Sheet
0-1790: $0.71
1790-2000: $0.68
2000-2500: $0.68
2500-5000: $0.65
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TL031CD
TL031CD
Texas Instruments
Operational Amplifiers - Op Amps Enhanced HFET Lw Pwr
Data Sheet
0-1: $0.40
1-25: $0.31
25-100: $0.27
100-250: $0.24
TL031CDG4
TL031CDG4
Texas Instruments
Operational Amplifiers - Op Amps Enh JFET Low-Pwr Prec Op Amp
Data Sheet
0-1: $0.36
1-25: $0.28
25-100: $0.25
100-250: $0.22
TL031CDR
TL031CDR
Texas Instruments
Operational Amplifiers - Op Amps Enhanced JFET Low-Power Precision
Data Sheet
0-1: $0.34
1-25: $0.27
25-100: $0.23
100-250: $0.20
TL031CDRE4
TL031CDRE4
Texas Instruments
Operational Amplifiers - Op Amps Enhanced JFET Low-Power Precision
Data Sheet
0-1: $0.34
1-25: $0.27
25-100: $0.23
100-250: $0.20
TL031CP
TL031CP
Texas Instruments
Operational Amplifiers - Op Amps Enhanced HFET Lw Pwr
Data Sheet
0-1: $0.37
1-25: $0.29
25-100: $0.25
100-250: $0.19
TL032ACDE4
TL032ACDE4
Texas Instruments
Operational Amplifiers - Op Amps Enhanced-JFET Lo-Pwr Low-Offset Dual
Data Sheet
0-1: $1.51
1-25: $1.22
25-100: $1.10
100-250: $1.00
