Product Summary

The UPS1J102MHD is an aluminum electrolytic capacitor.

Parametrics

UPS1J102MHD absolute maximum ratings: (1) Category Temperature Range: -55 ~ +105°C (6.3 ~ 100V), –40 ~ +105°C (160 ~ 400V), –25 ~ +105°C (450V) ; (2) Rated Voltage Range: 6.3 ~ 450V; (3) Rated Capacitance Range: 0.47 ~ 15000μF; (4) Capacitance Tolerance: ±20% at 120Hz, 20°C.

Features

UPS1J102MHD features: (1) Wide temperature range type, miniature sized; (2) Adapted to the RoHS directive (2002/95/EC) .

Diagrams

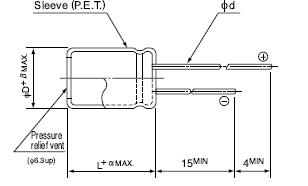

UPS1J102MHD Dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

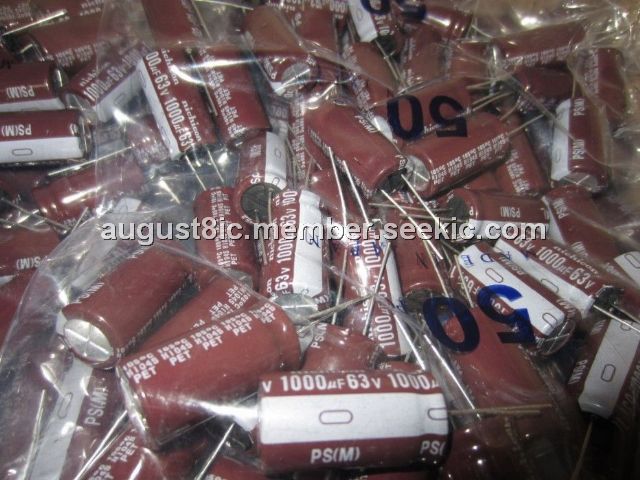

UPS1J102MHD
UPS1J102MHD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 63volts 1000uF 16x31.5 20% 7.5LS
Data Sheet
0-1: $1.31
1-10: $1.19
10-100: $1.08
100-500: $0.83
UPS1J102MHD1AA
UPS1J102MHD1AA
Nichicon
Aluminum Electrolytic Capacitors - Leaded 1000UF 63V 105c
Data Sheet
0-1: $0.46
1-500: $0.37
500-1000: $0.35
1000-1500: $0.34
