Product Summary
The AT24C512N-10SU-2.7 is a two-wire serial EEPROM. The AT24C512 provides 524,288 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 65,536 words of 8 bits each. The cascadable feature of the AT24C512N-10SU-2.7 allows up to four devices to share a common two-wire bus. The AT24C512N-10SU-2.7 is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Parametrics
AT24C512N-10SU-2.7 absolute maximum ratings: (1) Operating Temperature: -55 to +125°C; (2) Storage Temperature: -65 to +150°C; (3) Voltage on Any Pin with Respect to Ground: -1.0 to +7.0V; (4) Maximum Operating Voltage: 6.25V; (5) DC Output Current: 5.0mA.
Features
AT24C512N-10SU-2.7 features: (1) Low-voltage and Standard-voltage Operation: 2.7V (Vcc=2.7V to 5.5V) , 1.8V (Vcc=1/8 to 3.6V) ; (2) Internally Organized 65,536 x 8; (3) Two-wire Serial Interface; (4) Schmitt Triggers, Filtered Inputs for Noise Suppression; (5) Bidirectional Data Transfer Protocol; (6) 1 MHz (5V), 400 kHz (2.7V) and 100 kHz (1.8V) Compatibility; (7) Automotive Devices Available; (8) Self-timed Write Cycle (5 ms Max) ; (9) Die Sales: Wafer Form, Waffle Pack and Bumped Die.

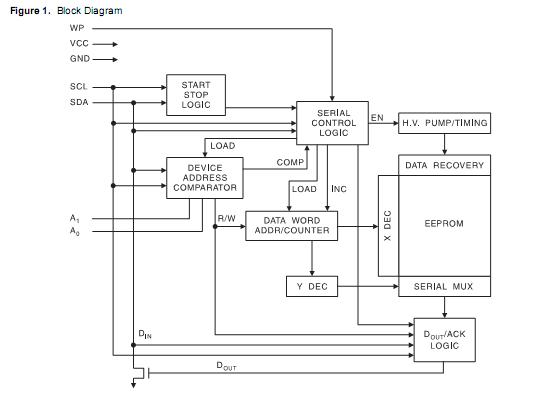

Diagrams

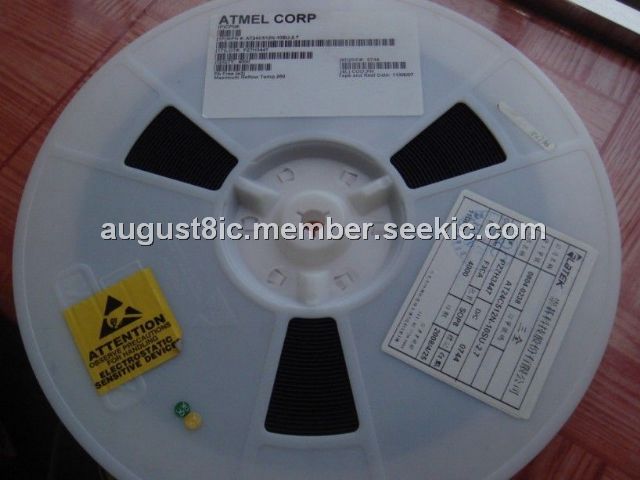

AT24C512N-10SU-2.7
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT24C512N-10SU-2.7 |
Atmel |
EEPROM 512K 2-WIRE BUS |
Data Sheet |
Negotiable |
|
||||
