Product Summary

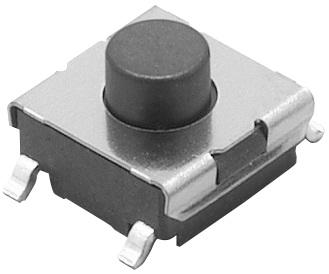

The B3FS-1010P is a surface-mounting swithces ideal for high-density mounting.

Parametrics

B3FS-1010P ratings: (1) Switching capacity: 50mA, 24 VDC (resistive load) ; (2) Contact resistance: 100mΩ max. (rated: 1 mA, 5 VDC) ; (3) Insulation resistance: 100MΩ min. (at 100 VDC) ; (4) Dielectric strength: 250250 VAC, 50/60 Hz for 1 min; (5) Ambient operating temperature: -25 to +70°C (at 60% RH max.) with no icing or condensation; (6) Ambient operating humidity: 35% to 85% (at 5 to 35°C) .

Features

B3FS-1010P features: (1) Tape packing style also available; (2) Allows reflow soldering; (3) 3 actuator heights for design flexibility; Projected plunger versions allow installation of B32-series keytops; (4) RoHS Compliant.

Diagrams

B3FS-1010P Dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
B3FS-1010P
B3FS-1010P

Omron Electronics

Tactile & Jog Switches TACTILE SWITCH

Data Sheet

0-1: $0.39
1-25: $0.35
25-50: $0.31
50-100: $0.28
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
B3FS-1000
B3FS-1000

Omron Electronics

Tactile & Jog Switches 6X6X3.1mm 100gF

Data Sheet

0-1: $0.29
1-25: $0.27
25-50: $0.25
50-100: $0.23
B3FS-1000P
B3FS-1000P

Omron Electronics

Tactile & Jog Switches 6X6X3.1mm 100gF TR

Data Sheet

0-3000: $0.19
B3FS-1002
B3FS-1002

Omron Electronics

Tactile & Jog Switches 6X6 Proj 3.1mm Btn Oper Force 150g

Data Sheet

0-1: $0.32
1-25: $0.32
25-50: $0.28
50-100: $0.25
B3FS-1002P
B3FS-1002P

Omron Electronics

Tactile & Jog Switches 6X6X4.3mm 150gF T/R

Data Sheet

0-1: $0.33
1-25: $0.30
25-50: $0.26
50-100: $0.23
B3FS-1002PCHN
B3FS-1002PCHN

Omron Electronics

Tactile & Jog Switches MECHANICAL KEYSWITCH

Data Sheet

Negotiable
B3FS-1002P-SUS
B3FS-1002P-SUS

Omron Electronics

Tactile & Jog Switches Mechanical Keyswitch

Data Sheet

0-2450: $0.26
2450-3000: $0.26
