BCM2046KWBG

low-cost Bluetooth mouse and keyboard device, 4 dBm, 152 keys, BGA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.50~4.00

PartNumber:: BCM2046KWBG

Brand:: BroadcomCorporation - BROADCOM | Pack: BGA | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Melody's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-12

From Other Seller

Part Number:BCM2046KWBG
US $3.50 - 4.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
TDA7360

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

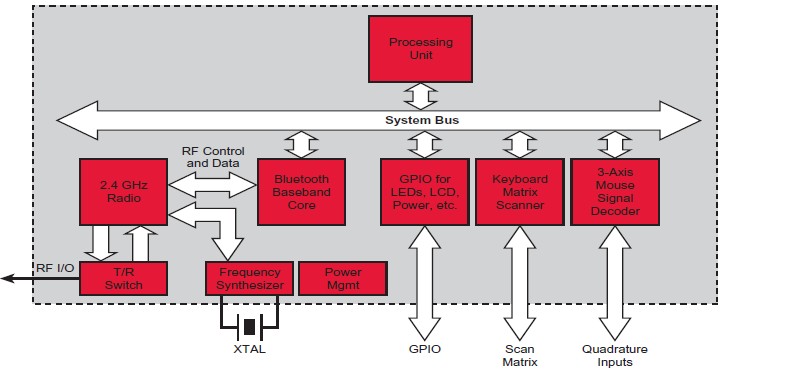

The BCM2046KWBG is a major breakthrough in the design of low-cost Bluetooth mouse and keyboard device. The BCM2046KWBG is a true single chip that integrates the entire profile, application, and Bluetooth protocol stack and is fully compliant with the Bluetooth SIG specification for human interface devices. The BCM2046KWBG is fully compliant with the version 1.2 Bluetooth specification, including adaptive frequency hopping and fast connection, which are essential to mouse and keyboard applications in personal computers.

Parametrics

BCM2046KWBG absolute maximum ratings: (1)output power: +4 dBm.

Features

BCM2046KWBG features: (1)Single-chip Bluetooth device with fully integrated Human Interface Device (HID)profile and full Bluetooth stack; (2)On-board 8051 processor and RAM/ROM memory; (3)Custom-integrated Bluetooth core processor has been optimized to support the HID profile and minimize power consumption; (4)Bluetooth version 1.2 compliant including support for adaptive frequency hopping and fast connect; (5)Fully integrated radio eliminates all filters and matching components and features a single-pin interface directly to antenna; (6)Direct interface to keyboard scan matrix with full support for 152 keys and user-customizable hot keys; (7)Integrated quadrature signal decoder to support both ball and optical mouse designs; (8)Direct interface to LED and LCD displays; (9)Drive capability to power external optoelectronics; (10)ROM-based design eliminates external flash memories; (11)Flash option offered to support feature development; (12)Fully integrated low dropout (LDO)regulator provides direction interface to batteries; (13)Available in 64-pin fpBGA and 100-pin fpBGA packages.
