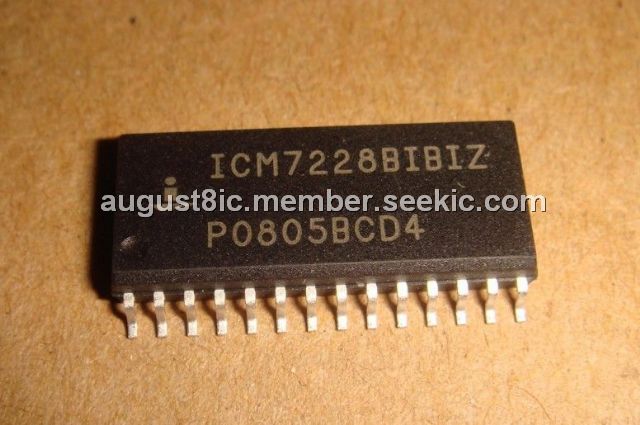

ICM7228BIBIZ

8-digit, microprocessor-compatible, led display decoder driver, 6V, 500mA,

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~6.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~6.50

PartNumber:: ICM7228BIBIZ

Brand:: Intersil Corporation - Intersil | Pack: SOIC | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Melody's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-22

From Other Seller

Part Number:ICM7228BIBIZ
US $5.00 - 6.50
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

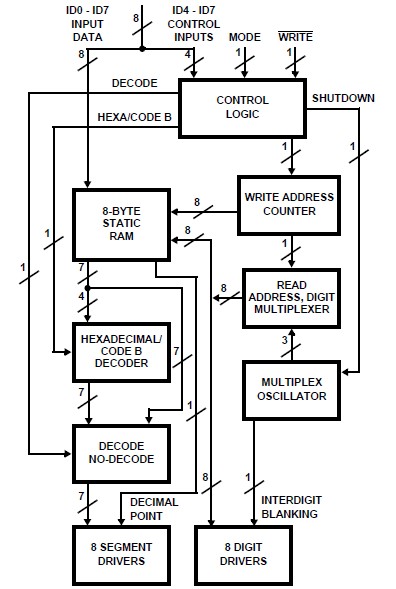

The ICM7228BIBIZ is an 8-digit, microprocessor-compatible, led display decoder driver. The ICM7228BIBIZ interfaces microprocessors to an 8-digit, 7-segment, numeric LED display. Included on chip are two types of 7-segment decoder, multiplex scan circuitry, LED display segment drivers, LED display digit drivers and an 8-byte static memory as display RAM. The Intersil ICM7228BIBIZ is an alternative to both the Maxim ICM7228BIBIZ and the Intersil ICM7228BIBIZ display drivers. Notice that the ICM7228BIBIZ has an additional single digit access mode. This could make the Intersil ICM7218A/B software incompatible with ICM7228BIBIZ operation.

Parametrics

ICM7228BIBIZ absolute maximum ratings: (1)Supply Voltage (VDD - VSS): 6V; (2)Digit Output Current: 500mA; (3)Segment Output Current: 100mA; (4)Input Voltage (Any Terminal): (VSS-0.3V)<VIN<(VDD+0.3V); (5)Operating Temperature Range: -40℃ to 85℃.

Features

ICM7228BIBIZ features: (1)Pb-Free Plus Anneal Available (RoHS Compliant); (2)Improved 2nd Source to Maxim ICM7218; (3)Fast Write Access Time of 200ns; (4)Multiple Microprocessor Compatible Versions; (5)Hexadecimal, Code B and No Decode Modes; (6)Individual Segment Control with “No Decode” Feature; (7)Digit and Segment Drivers On-Chip; (8)Non-Overlapping Digits Drive; (9)Common Anode and Common Cathode LED Versions; (10)Low Power CMOS Architecture; (11)Single 5V Supply.
