Product Summary

The LM2576HVSX-5.0/NOPB is a regulator. The LM2576HVSX-5.0/NOPB is monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation. The LM2576HVSX-5.0/NOPB is available in fixed output voltages of 3.3V, 5V, 12V, 15V, and an adjustable output version. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2576HVSX-5.0/NOPB offers a high-efficiency replacement for popular three-terminal linear regulators. It substantially reduces the size of the heat sink, and in some cases no heat sink is required.

Parametrics

LM2576HVSX-5.0/NOPB absolute maximum ratings: (1)Maximum Supply Voltage: 63V; (2)ON /OFF Pin Input Voltage: -0.3V ≤ V ≤ +VIN; (3)Output Voltage to Ground (Steady State): -1V; (4)Power Dissipation: Internally Limited; (5)Storage Temperature Range: -65℃ to +150℃; (6)Maximum Junction Temperature: 150℃.

Features

LM2576HVSX-5.0/NOPB features: (1)3.3V, 5V, 12V, 15V, and adjustable output versions; (2)Adjustable versiooutput voltage range, 1.23V to 37V (57V for HV version)±4% max over line and load conditions; (3)Guaranteed 3A output current; (4)Wide input voltage range, 40V up to 60V for HV version; (5)Requires only 4 external components; (6)52 kHz fixed frequency internal oscillator; (7)TTL shutdowcapability, low power standby mode; (8)High efficiency; (9)Uses readily available standard inductors; (10)Thermal shutdowand current limit protection; (11)P+ Product Enhancement tested.

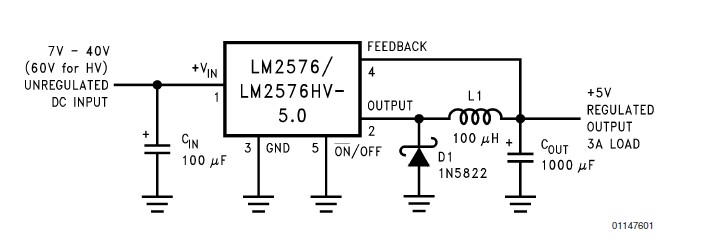

Diagrams

LM2576HVSX-5.0/NOPB pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM2576HVSX-5.0/NOPB
LM2576HVSX-5.0/NOPB

National Semiconductor (TI)

Switching Converters, Regulators & Controllers

Data Sheet

0-1: $3.93
1-25: $3.16
25-100: $2.88
100-250: $2.60
250-500: $2.33
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM250
LM250

Other


Data Sheet

Negotiable
LM25005EVAL
LM25005EVAL

National Semiconductor (TI)

Power Management IC Development Tools LM25005 EVAL BOARD

Data Sheet

0-1: $24.90
LM25005MH
LM25005MH

National Semiconductor (TI)

Switching Converters, Regulators & Controllers

Data Sheet

0-219: $1.02
219-292: $1.00
292-511: $0.98
511-803: $0.96
LM25005MH/NOPB
LM25005MH/NOPB

National Semiconductor (TI)

DC/DC Switching Regulators 42V,2.5A STEP-DOWN SWITCHING REG

Data Sheet

0-1: $1.89
1-10: $1.70
10-25: $1.51
25-50: $1.42
LM25005MHX
LM25005MHX

National Semiconductor (TI)

Switching Converters, Regulators & Controllers

Data Sheet

0-2500: $0.94
LM25005MHX/NOPB
LM25005MHX/NOPB

National Semiconductor (TI)

Switching Converters, Regulators & Controllers

Data Sheet

0-2010: $0.94
2010-2500: $0.94
