Product Summary
The LM2592HVSX-5.0/NOPB is a simple switcher power converter. The LM2592HVSX-5.0/NOPB is monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 2A load with excellent line and load regulation. The LM2592HVSX-5.0/NOPB is available in fixed output voltages of 3.3V, 5V, and an adjustable output version. This series of switching regulators is similar to the LM2592HVSX-5.0/NOPB, but without some of the supervisory and performance features of the latter. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation†, improved line and load specifications and a fixed-frequency oscillator.
Parametrics
LM2592HVSX-5.0/NOPB absolute maximum ratings: (1)Maximum Supply Voltage (VIN): 63V; (2)ON/OFF Pin Voltage: -0.3 to+25V; (3)Feedback Pin Voltage: -0.3 to+25V; (4)Output Voltage to Ground (Steady State): -1V; (5)Power Dissipation: Internally limited; (6)Storage Temperature Range: -65℃ to +150℃; (7)Switch current Limit Peak Current: 3.0 A.
Features
LM2592HVSX-5.0/NOPB features: (1)3.3V, 5V, and adjustable output versions; (2)Adjustable versiooutput voltage range, 1.2V to 57V ±4% max over line and load conditions; (3)Guaranteed 2A output load current; (4)Available i5-piTO-220 and TO-263 (surface mount)Package; (5)Input voltage range up to 60V; (6)150 kHz fixed frequency internal oscillator; (7)On/Off control; (8)Low power standby mode, IQ typically 90 μA; (9)High Efficiency; (10)Thermal shutdowand current limit protection.

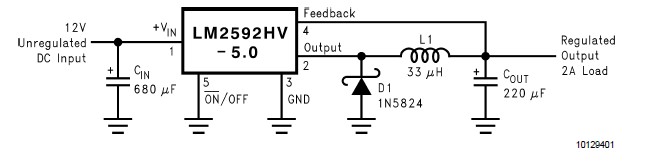

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2592HVSX-5.0/NOPB |
National Semiconductor (TI) |
Switching Converters, Regulators & Controllers |
Data Sheet |
|
|
||||||||||||||
