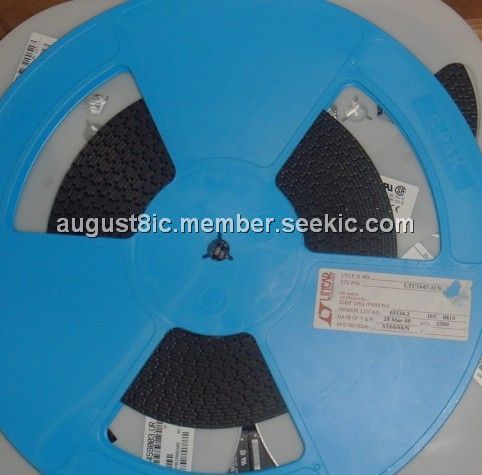

LTC1647-1CS8#TRPBF

dual Hot SwapTM controller, 17V, 6 mA, LTC1647-1CS8#TRPBF, SOP-8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.90~1.10

PartNumber:: LTC1647-1CS8#TRPBF

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Melody's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-08

From Other Seller

Part Number:LTC1647-1CS8#TRPBF
US $0.90 - 1.10
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LTC1647-1CS8#TRPBF is a dual Hot SwapTM controller that permit a board to be safely inserted and removed from a live backplane. Using external N-channel MOSFETs, the board supply voltages can be ramped up at a programmable rate. A high side switch driver controls the MOSFET gates for supply voltages ranging from 2.7V to 16.5V. A programmable electronic circuit breaker protects against overloads and shorts. The ON pins are used to control board power or clear a fault.

Parametrics

LTC1647-1CS8#TRPBF absolute maximum ratings: (1)Supply Voltage (VCC): 17V; (2)Input Voltage (SENSE): –0.3V to (VCC + 0.3V); (3)Input Voltage (ON): –0.3V to 17V; (4)Output Voltage (FAULT): –0.3V to 17V; (5)Output Voltage (GATE): Internally Limited; (6)Operating Temperature Range Commercial: 0℃ to 70℃, Industrial: –40℃ to 85℃; (7)Storage Temperature Range: –65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1647-1CS8#TRPBF features: (1)Allows Safe Board Insertioand Removal from a Live Backplane; (2)Programmable Electronic Circuit Breaker; (3)FAULT Output Indication; (4)Programmable Supply Voltage Power-Up Rate; (5)High Side Drive for External MOSFET Switches; (6)Controls Supply Voltages from 2.7V to 16.5V; (7)Undervoltage Lockout.
