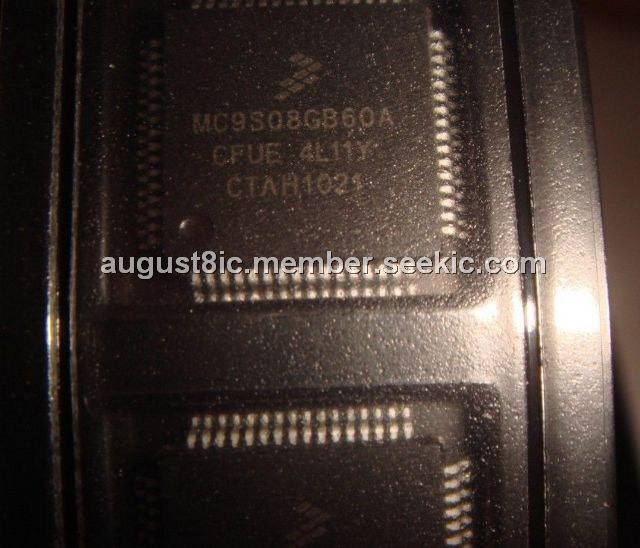

MC9S08GB60ACFUE

Product Summary

The MC9S08GB60ACFUE is an 8-bit microcontroller unit (MCU). The MC9S08GB60ACFUE in the family uses the enhanced HCS08 core and are available with a variety of modules, memory sizes, memory types, and package types.

Parametrics

MC9S08GB60ACFUE absolute maximum ratings: (1)Supply voltage VDD: –0.3 to +3.8 V; (2)Maximum current into VDD IDD: 120 mA; (3)Digital input voltage VIn: –0.3 to VDD + 0.3 V; (4)Instantaneous maximum current Single pin limit (applies to all port pins)ID: ± 25 mA; (5)Storage temperature range Tstg: –55 to 150 ℃.

Features

MC9S08GB60ACFUE features: (1)40-MHz HCS08 CPU (central processor unit); (2)HC08 instruction set with added BGND instruction; (3)Breakpoint capability to allow single breakpoint setting during in-circuit debugging (plus two more breakpoints in on-chip debug module); (4)Debug module containing two comparators and nine trigger modes. Eight deep FIFO for storing change-of-flow addresses and event-only data. Debug module supports both tag and force breakpoints; (5)Support for up to 32 interrupt/reset sources; (6)Power-saving modes: wait plus three stops; (7)Inter-integrated circuit bus module to operate up to 100 kbps (IIC); (8)One 3-channel and one 5-channel 16-bit timer/pulse width modulator (TPM)modules with selectable input capture, output compare, and edge-aligned PWM capability on each channel. Each timer module may be configured for buffered, centered PWM (CPWM)on all channels (TPMx); (9)8-pin keyboard interrupt module (KBI); (10)16 high-current pins (limited by package dissipation); (11)Software selectable pullups on ports when used as input. Selection is on an individual port bit basis; (12)During output mode, pullups are disengaged.; (13)Internal pullup on RESET and IRQ pin to reduce customer system cost; (14)Up to 56 general-purpose input/output (I/O)pins, depending on package selection; (15)64-pin low-profile quad flat package (LQFP)— MC9S08GBxxA; (16)48-pin quad flat package, no lead (QFN)— MC9S08GTxxA; (17)44-pin quad flat package (QFP)— MC9S08GTxxA; (18).
