Product Summary
The NC7SZ74K8X is a single D-type CMOS Flip-Flop with preset and clear from Fairchild Ultra High Speed Series of TinyLogic in the space saving US8 package. The NC7SZ74K8X is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad Vcc operating range. The NC7SZ74K8X is specified to operate over the 1.65V to 5.5V Vcc range.
Parametrics
NC7SZ74K8X absolute maximum ratings: (1) Supply Voltage (VCC) : -0.5V to +7.0V; (2) DC Input Voltage (VIN) : − 0.5V to +7.0V; (3) DC Output Voltage (VOUT) : -0.5V to + 7.0V; (4) DC Input Diode Current (IIK) VIN<0V: ±50mA; (5) DC Output Diode Current (IOK) VOUT<0V: -50mA; (6) DC Output (IOUT) Source/Sink Current: ± 50mA; (7) Storage Temperature Range (TSTG): -65° C to +150°C; (8) Junction Temperature under Bias (TJ) : 150°C; (8) Junction Lead Temperature (TL) (Soldering, 10 seconds) : 260 °C; (9) Power Dissipation (PD) @ + 85° C: 250mW.
Features
NC7SZ74K8X features: (1) Space saving US8 surface mount package; (2) MicroPak Pb-Free leadless package; (3) Ultra High Speed; tPD 2.6 ns Typ into 50pF at 5V Vcc; (4) High Output Drive; ±24mA at 3V Vcc; (5) Broad Vcc Operating Range; 1.65V to 5.5V; (6) Power down high impedance inputs/output; (7) Overvoltage tolerant inputs facilitate 5V to 3V translation; (8) Patented noise/EMI reduction circuitry implemented.

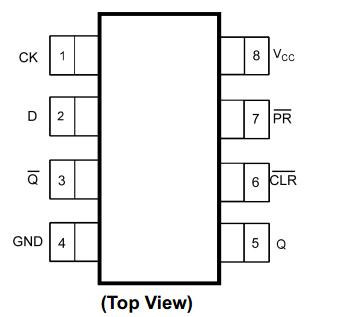

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NC7SZ74K8X |
Fairchild Semiconductor |
Flip Flops TinyLogic UHS D-Type |
Data Sheet |
|
|
||||||||||||
|
NC7SZ74K8X_Q |
Fairchild Semiconductor |
Flip Flops |
Data Sheet |
Negotiable |
|
||||||||||||
