Product Summary
The RClamp3304N.TCT is a low capacitance TVS array designed to protect high speed data interfaces. The RClamp3304N.TCT is in a 10-pin, RoHS/WEEE compliant,SLP2626P10 package. Applications of the RClamp3304N.TCT include: USB 2.0, 10/100/1000 Ethernet, Digital Visual Interface (DVI) , T1/E1 Secondary Protection, T3/E3 Secondary Protection and Analog Video.
Parametrics
RClamp3304N.TCT absolute maximum ratings: (1) Peak Pulse Power (tp=8/20μs) Ppk: 450Watts; (2) Peak Pulse Current (tp=8/20μs) Ipp: 25A; (3) ESD per IEC 61000-4-2 (Air) VESD: 25kV, ESD per IEC 61000-4-2 (Contract) : 15W; (4) Operating temperature: -55 to +125°C; (5) Storage temperature: -55 to +150°C.
Features
RClamp3304N.TCT features: (1) Array of surge rated diodes with internal TVS Diode; (2) Small package saves board space; (3) protects up to four I/O lines; (4) low capacitance (＜5pF) for high-speed interfaces; (5) low leakage current and clamping voltage; (6) low operatinf voltage; 2.5 and 3.3V; (7) solid-state silicon-avalanche technology.

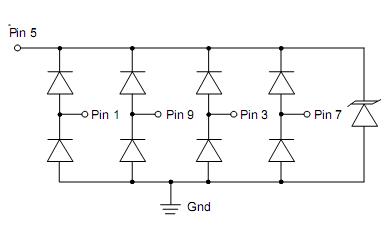

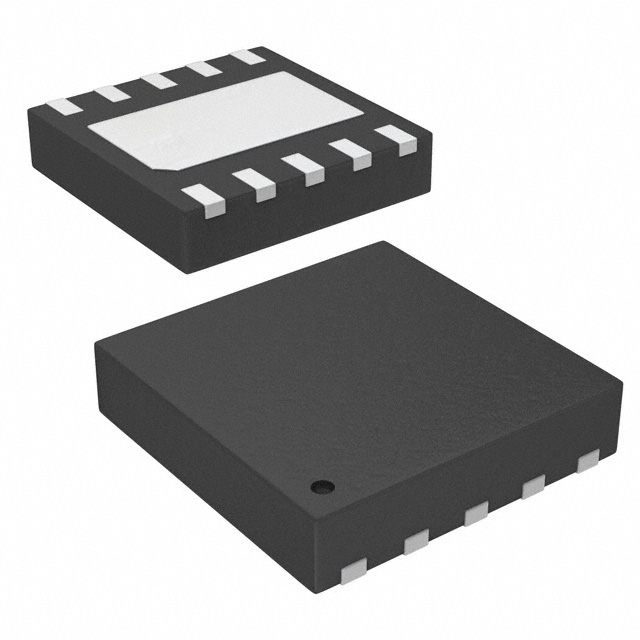

Diagrams
