Product Summary

The SGA-6389Z is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration featuring 1 micron emitters provides high FT and excellent thermal perfomance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products. Only 2 DC-blocking capacitors, a bias resistor and an optional RF choke are required for operation. The applications of the SGA-6389Z include PA Driver Amplifier, Cellular, PCS, GSM, UMTS, IF Amplifier, Wireless Data, Satellite.

Parametrics

SGA-6389Z absolute maximum ratings: (1)Max. Device Current (ID): 160 mA; (2)Max. Device Voltage (VD): 7 V; (3)Max. RF Input Power: +18 dBm; (4)Max. Junction Temp (TJ): +150℃; (5)Operating Temp. Range (TL): -40℃ to +85℃; (6)Max. Storage Temp: +150℃.

Features

SGA-6389Z features: (1)Now available in Lead Free, RoHS Compliant, & Green Packaging; (2)Broadband Operation: DC-4500 MHz; (3)Cascadable 50ohm; (4)Patented SiGe Technology; (5)Operates From Single Supply; (6)Low Thermal Resistance Package.

Diagrams

SGA-6389Z block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SGA-6389Z
SGA-6389Z

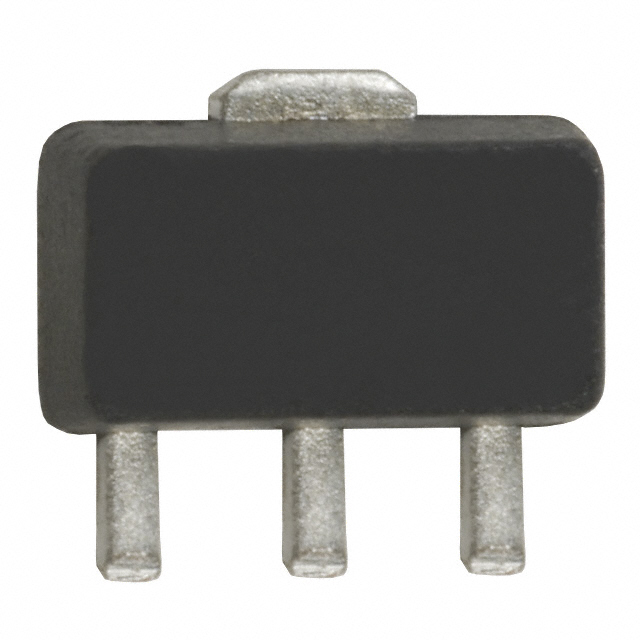

IC AMP HBT SIGE 4500MHZ SOT-89
Data Sheet
0-1: $1.85
1-10: $1.68
10-25: $1.50
25-100: $1.35
100-250: $1.20
250-500: $1.05
500-1000: $0.87
